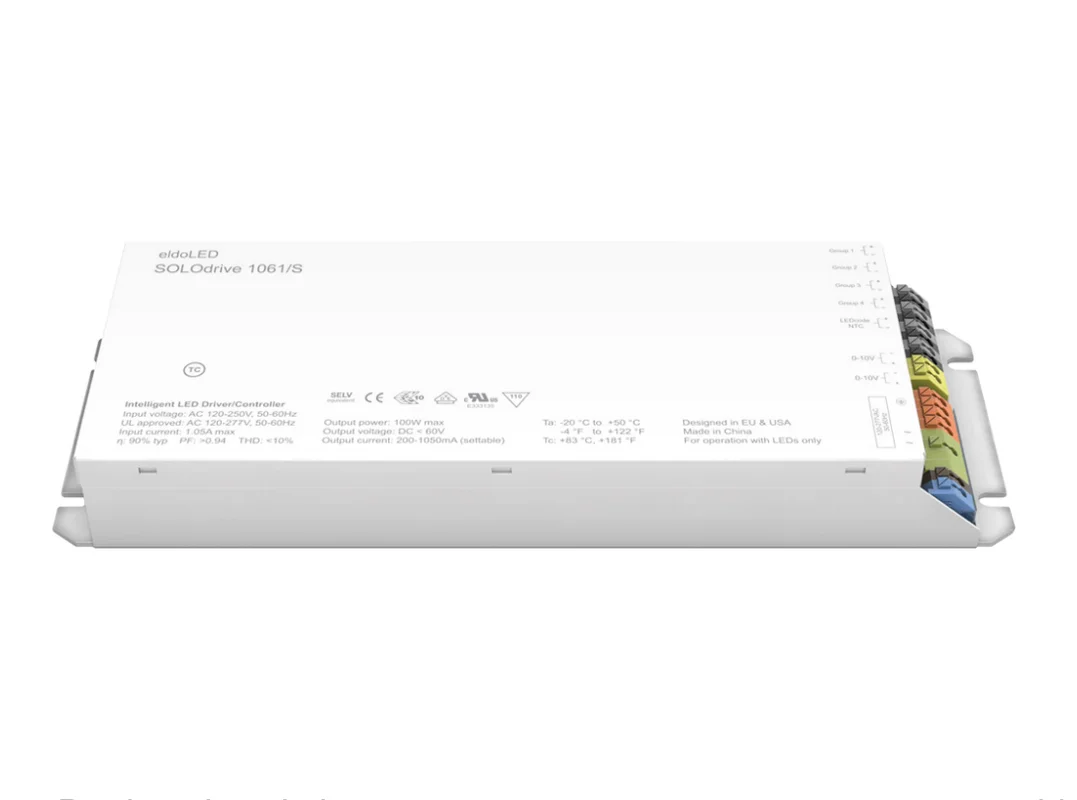

1061/S SOLOdrive eldoLED Programmable Constant Current LED Driver – 100W 4-channels-Fast Shipping

Description

SOLOdrive 1061/S Programmable Constant Current LED Driver, 100W Max Power Output, 4-output Channels, Universal 120-277V Input Voltage, Programmable Fixed Output Current 200-1050mA Output Current, 2-57VDC Volts Output, 0-10V Analog and LEDcode Dimming 100%-0.1%, Push-in Terminal Connectors

Programming Options:

Output Current: 150-1400mA in 1mA increments

Dimming Curve: LOG logarithmic (factory default), LIN linear, SLN soft linear, SQU square

Minimum Dimming Level: 0.1% (factory default) in 0.1% increments

eldoLED SOLOdrive 1061/S 100W 4-Channel

SOLOdrive AC, 100W, 0-10V, 1 control channel, constant current, 4x 57V outputs, side feed, square metal

Features:

Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to dark for every fixture

LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls

NTC interface for robust thermal management

4 (UL Class 2) Outputs

Benefits:

Industry-best dimming performance for your fixture/application

Wide application area thanks to fully configurable dimming curve

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.
