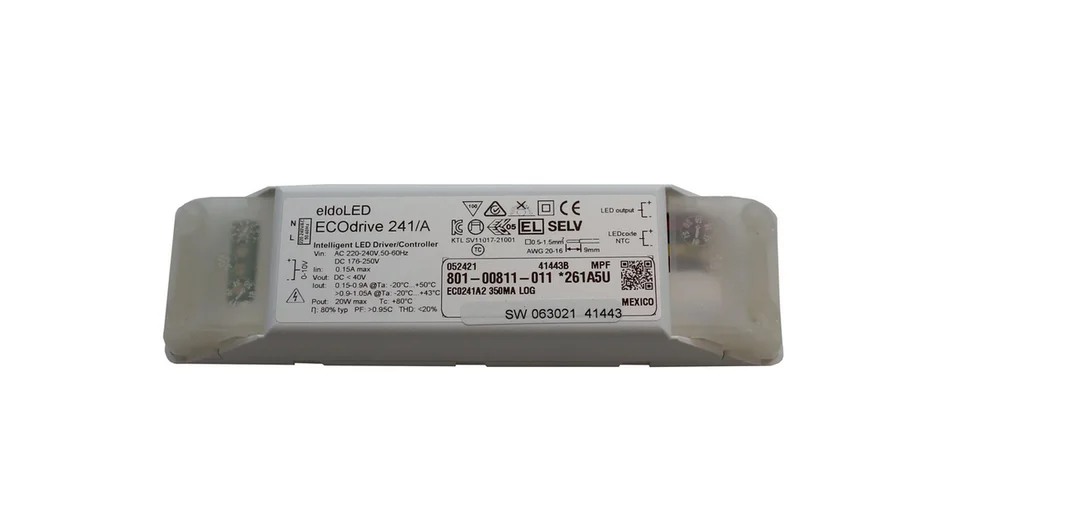

241/A ECOdrive (EC0241A2) eldoLED Programmable Constant Current LED Driver – 20W 0-10V Dim 220-240V-Fast Shipping

Description

ECOdrive 241/A Programmable Constant Current LED Driver, 20W Max Power Output, 220-240V Input, Programmable Fixed Current Output 150-1050mA, Single 2-40V Output, Analog 0-10V Dimming 1%-100%, Side Feed w/ Plastic Cover Feet Mounting

eldoLED ECOdrive 241/A 20W Constant Current Analog (0-10V) Dimmable LED Driver 220-240V

ECOdrive, 20W, 0-10V, 1 control channel, constant current, 1 x 40V output, side feed square metal case/plastic lead cover

Programmable Options:

Output Current: 150-1050mA in 1mA increments

Dimming Curve: LIN linear, LOG logarithmic (factory default), SNL soft linear, SQU square

Minimum Dimming Level: 1% (factory default) in 0.1% increments

If you do not enter the programmable output settings as outlined above ADD TO CART, we will contact you after placing the order to get the output settings (from sticker on the driver for existing applications or custom settings for new applications) so we can program unit to this output specification. We are not able to ship with out programming.

For example 600MA LIN is what we will need to program your driver prior to shipping.
