Description

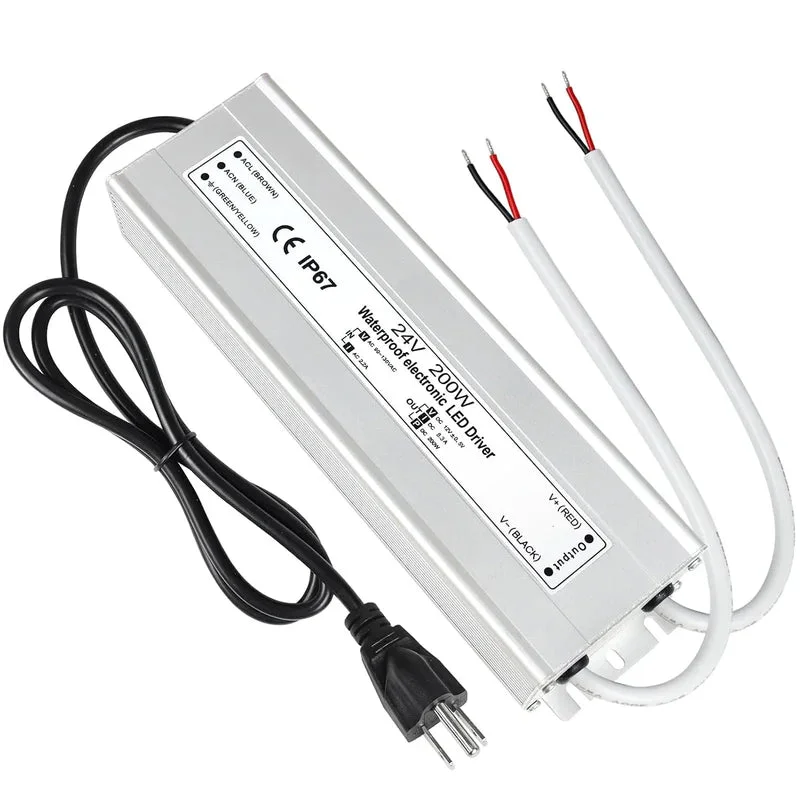

24V Waterproof LED Transformer – 200W–500W Outdoor LED Driver, 90–140V AC Input, Single or Dual Wire Output, CE/RoHS/FCC Certified, US Plug & Wire Lead Options
Package Included
| Version | Package Included |
|---|---|
| 200W Single Wire US Plug | 1 × 200W Waterproof LED Transformer, User Manual |
| 200W Single Wire Wire Leads (3-core) | 1 × 200W Waterproof LED Transformer, User Manual |
| 200W Dual Wire US Plug | 1 × 200W Waterproof LED Transformer, User Manual |
| 200W Dual Wire Wire Leads (3-core) | 1 × 200W Waterproof LED Transformer, User Manual |
| 350W Single Wire US Plug | 1 × 350W Waterproof LED Transformer, User Manual |
| 350W Single Wire Wire Leads (3-core) | 1 × 350W Waterproof LED Transformer, User Manual |
| 350W Dual Wire US Plug | 1 × 350W Waterproof LED Transformer, User Manual |
| 350W Dual Wire Wire Leads (3-core) | 1 × 350W Waterproof LED Transformer, User Manual |
| 400W Single Wire US Plug | 1 × 400W Waterproof LED Transformer, User Manual |
| 400W Single Wire Wire Leads (3-core) | 1 × 400W Waterproof LED Transformer, User Manual |
| 400W Dual Wire US Plug | 1 × 400W Waterproof LED Transformer, User Manual |
| 400W Dual Wire Wire Leads (3-core) | 1 × 400W Waterproof LED Transformer, User Manual |
| 500W Dual Wire US Plug | 1 × 500W Waterproof LED Transformer, User Manual |
| 500W Dual Wire Wire Leads (3-core) | 1 × 500W Waterproof LED Transformer, User Manual |
About this item
- Model: 24V LED Driver, Input: 90–140V AC, 50–60Hz; Output: 24V DC / 200W–500W
- Automatic protection for short circuit, overload, over-voltage, over-current, and high temperature (Hiccup mode, auto-recovery)
- 100% Waterproof IP67 protection; aluminum alloy housing ensures heat dissipation and stability for outdoor use
- Converts AC to stable DC output, widely used for LED strip lights, LED bulbs, outdoor lighting, and other 24V DC LED devices
- High-quality construction; dedicated seller support available
Order & Logistics
- Lead Time: Ships within 1–3 business days
- Packing: Protective cardboard box with user manual
- Ships from local warehouses (US, Canada, UK, Germany) with delivery in 3–7 days. In rare cases, shipment may be fulfilled from central warehouse if local stock is unavailable(9–18 days standard or 5–9 days express.)
Key Specifications
- Input Voltage: 90–140V AC, 50–60Hz
- Output Voltage / Wattage: 24V DC / 200W–500W
- Package Qty: 1-Pack
- Housing: Aluminum Alloy, Waterproof IP67
- Connector: Single / Dual Wire Output
- Protection: Short circuit, overload, over-voltage, over-current, high temperature (Hiccup mode, auto-recovery)
| Model | PFH-200-24 | PFH-350-24 | PFH-400-24 | PFH-500-24 |
|---|---|---|---|---|
| Input voltage range | 90–140V AC | 110V AC | 90–140V AC | 110V AC |
| Output power | 200W | 350W | 400W | 500W |
| Rated output voltage | 24V DC | 24V DC | 24V DC | 24V DC |
| Rated output current | 8.33A | 14.6A | 16.6A | 20.8A |
| Output current range | 0–8.33A | 0–14.6A | 0–16.6A | 0–20.8A |
| Weight | 1.11 kg | 1.38 kg | 1.54 kg | 1.68 kg |
| Product dimensions | 10.87 × 4.09 × 2.2 in | 11.1 × 5.59 × 2.24 in | 11.06 × 5.47 × 2.24 in | 11 × 5.3 × 2.7 in |
| Waterproof rating | IP67 | IP67 | IP67 | IP67 |
| Safety protection | Overload, over-voltage, over-temperature, overcurrent, and short-circuit protections. | |||
| Operating temperature | −20 °C to +60 °C, 20% to 90% RH (non-condensing) | |||
| PCB components | Using all-glass PCB (environmentally friendly, smoldering, high-temperature resistant, and long-life), and brand-new components. | |||
| Storage temperature | −20 °C to +85 °C, 10% to 95% RH (non-condensing) |
Usage Notes / Installation Tips
- Check the rated voltage and wattage of your device before connecting (≤500W)
- Do not overload beyond the rated capacity
- Suitable for outdoor use with IP67 waterproof rating
- Disconnect power before installation or wiring adjustments
- Ensure ventilation and allow housing to dissipate heat for continuous operation
Applications
- LED strip lights and LED bulbs (≤500W)
- Outdoor landscape and decorative lighting
- Waterproof LED driver for signage
- DIY electronics projects requiring stable 24V supply
- Small appliances and pumps within 500W load
