Description
DUALdrive 561/S Constant Current 2-Channel LED Driver, 50W Max Power Output, Programmable Fixed 150-1400mA Output Current per Channel, 2-55V Output, Analog 0-10V Dimming to dark 0.1%
Programming Options:
Output Current: 150-1400mA (1000mA factory default) in 1mA increments. LED outputs 1 and 2
Dimming Curve: LIN linear, LOG logarithmic (factory default), SLN soft linear, SQU square
Minimum Dimming Level: 0.1% (factory default) in 0.1% increments
LightShape Control: TWH Tunable White

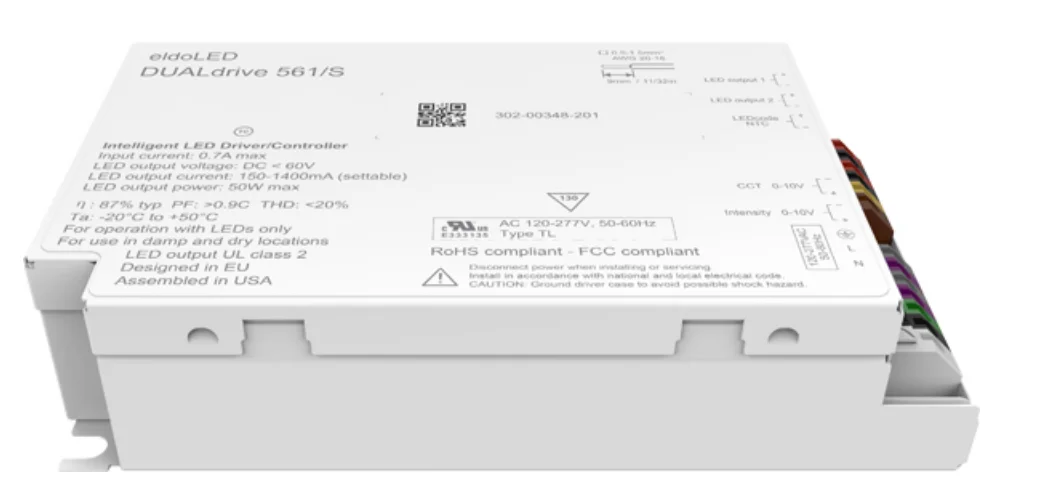

eldoLED DUALdrive 561/S 50W Constant Current LED Driver
DUALdrive, 50W, 2 x 0-10V Analog Dimming, 2 control channels, constant current, 2x 55V output, square metal, side feed
Features:
Natural dimming: Dim to dark, smooth brightness changes, excellent flicker performance, adaptable dimming curves, configurable minimum dimming level
LightShape: Tunable White, colour temperature and intensity control
Hybrid HydraDrive: provides the smoothest flicker-free high-performance dimming to dark for every fixture
LEDcode technology: configurable design to work with most constant current LED modules and arrays, while providing a connection point to integrated peripheral controls
Programmable to Fine-tune your driver for any application
Camera compatibility: Hybrid HydraDrive technology is proven to work in TV studios and security camera environments
Benefits:
Industry-best dimming performance for your fixture/application
Wide application area thanks to fully configurable dimming curve
If you do not enter the program code above before Add to Cart , we will contact after ordering to get the six digit alpha-numeric following the * located on a sticker on the driver so we can program it to this required spec. We are not able to ship with out the program code.
For example 600MA LIN is what we will need to program your driver prior to shipping.
