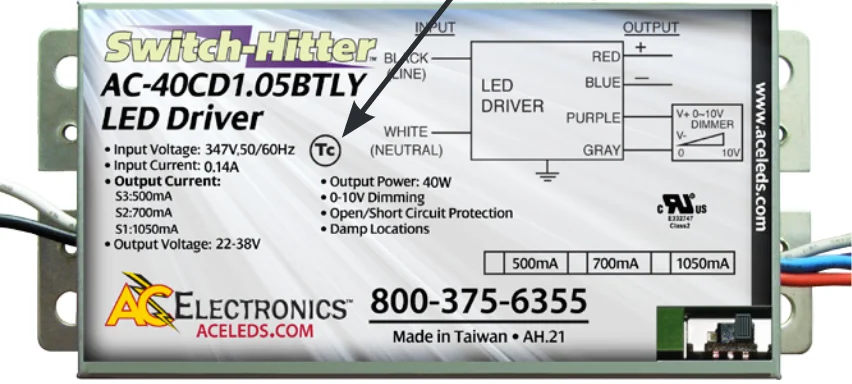

AC Electronics AC-40CD1.05BTLY Switch Hitter LED Driver-Fast Shipping

Description

AC Electronics Constant Current LED Driver, 40/26/13W, 1050/700/500mA, 347V input, 0-10V Dimming
AC Electronics Constant Current LED Driver

Multi-Current Switching

Switch 1: 40W, 1050mA

Switch 2: 26W, 700mA

Switch 3: 19W, 500mA

Output Voltage: 22-38V

Input Voltage: 347V

0-10V Dimming

Dimmable Range: 100-10%

Max Case Temp: 194°F/90°C

Min Starting Temp: -40°F/-40°C

UL and cUL Recognized

Class A Sound Rating

RoHS Compliant

IP64

Surge Protection
