AFLEX-100W-2000 Magnitude AFLEX Programmable Constant Current LED Driver – 30/40/50/60/75/100W 100-2000mA-Fast Shipping

Description

Magnitude Lighting Constant Current LED Driver, Select 30W/40W/50W/60W/75W/100W Max Power Output, Universal 120-277V Input, Programmable Output Current 100-2000mA (factory default 2000mA), 10-50VDC Output, Analog 0-10V Dimming 0.1-100%

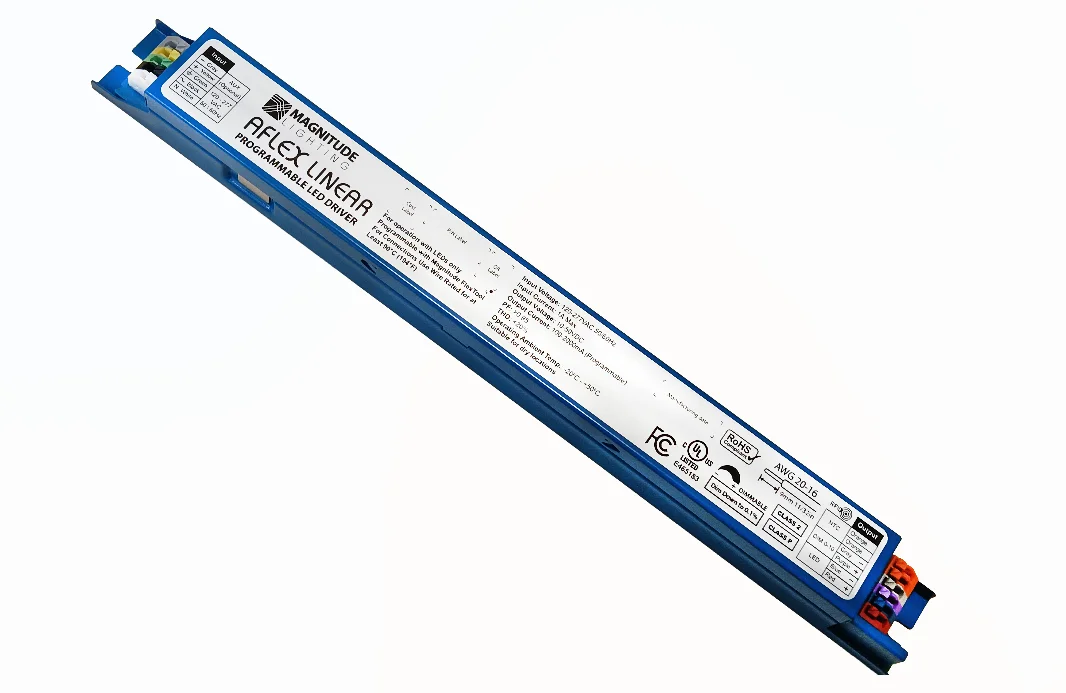

Magnitude 100W 2000mA Linear Programmable Constant Current LED Driver

Features

Max Power Output Options: 30W 40W 50W 60W 75W 100W

Output Voltage: 10-50V

Programmable Output Current: 100-2000mA (2000mA default)

Dimming: 0-10V Analog, 0.1% to 100%

Dimming Curve: Linear “L” (default), Logarithmic “G”

Auxiliary Power Port Options: 12V (default), 24V

Terminal blocks with side feed

Dry, IP40 Rated

CA Title 24 compliant

Class 2

Size 12.0″ L x 1.20″ W x 1.0″ H

Spec Sheets

Magnitude AFLEX 100W 2000mA Linear LED Driver Specification Sheet

Magnitude AFLEX Brochure

Magnitude AFLEX Linear LED Driver Installation Guide
