Description
BODINE Electronic Emergency Ballast, 500-600 Lumens, Dual 120V to 277V, Damp Location, Single Lamp Operation, One 17-215 W (2- 8) T8, T10 or T12 lamp or one (4-pin) long compact fluorescent lamps without an integral starter, not CA Title 20 Compliant

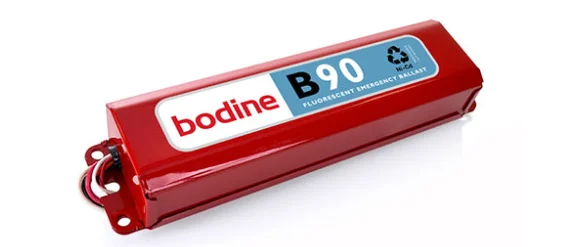

Bodine 500-600 Lumen Emergency Light Ballast
Replaces Bodine BDL900
Features
Initial light output 500 to 600 lumens
Illumination time of 90 minutes
Single pole test switch
Ballast temp. rating Ambient Temp. Range 32°F to 122°F
Dual input voltage of 120V to 277 VAC, 60 Hz
High-temperature, maintenance-free nickel-cadmium battery
Electrical rating 3.5 watts
Not recommended with reduced-wattage, energy-saving T8 lamps
Spec Sheets
Bodine B90 Specs
Bodine B90 Installation Instructions
