Description
BODINE BAC40EM6 / BAC40EM10 Combination AC and Emergency LED Driver, 40W Max Output Power and 6W or 10W in Emergency Mode, 120V/277V Input, Output 22.5-54VDC, Programmable Fixed 100-1100mA (factory default 1100mA) Output Current, up to 800/1300 Lumens, 0-10V Analog dimming 1-100%, California CEC Title 20 Compliant

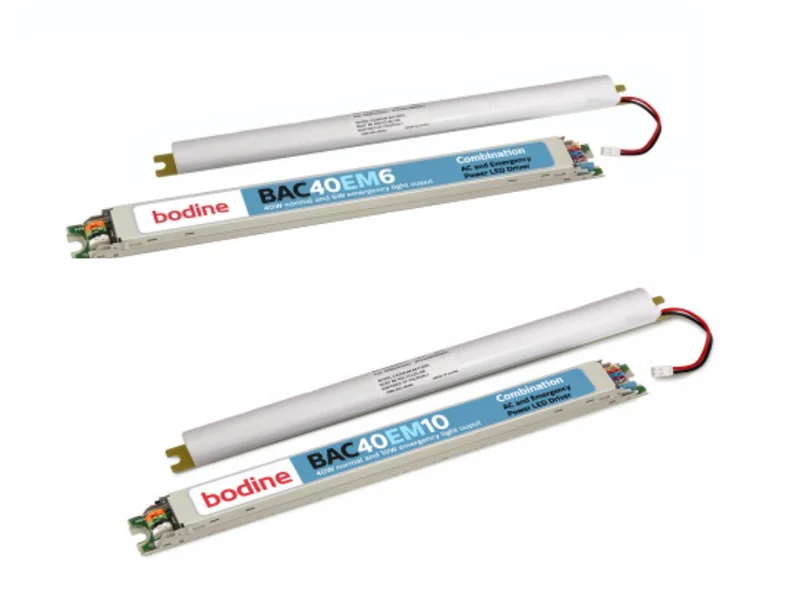

Bodine BAC40EM6 / BAC40EM10 Combination AC and Emergency LED Driver
The BAC40EM10 and BAC40EM6 are a combination 40W dimming LED driver with SimpleSet technology and a 10W or 6W emergency LED driver in one low-profile case. The combination drivers are supplied with a separate high temperature nickel-cadmium battery with one simple connection point and can deliver up to 10W or 6W, depending on the model, to a Class 2 LED load (measured at nominal battery voltage) for 90 minutes in emergency mode. They are suitable for indoor and damp locations, are universal input units and dim to 1%. The AC operation for the drivers must be programmed with SimpleSet technology.
Features
AC and emergency operation in one compact, low-profile case
Meets CEC Title 20 (California Energy Commission) efficiency standards
Class 2 output – UL 1310 Certified, CSA 22.2 No 223-M91 compliant
Separate battery for mounting flexibility
Emergency mode lumen output of up to 1300 lumens for BAC40EM10 and 800 lumens for BAC40EM6
Compatible with a variety of LED strip manufacturers
RoHS compliant
Spec Sheets
Bodine BAC40EM6 / BAC40EM10 Specs
Bodine BAC40EM6 Installation Instructions
Bodine BAC40EM10 Installation Instructions
