Description

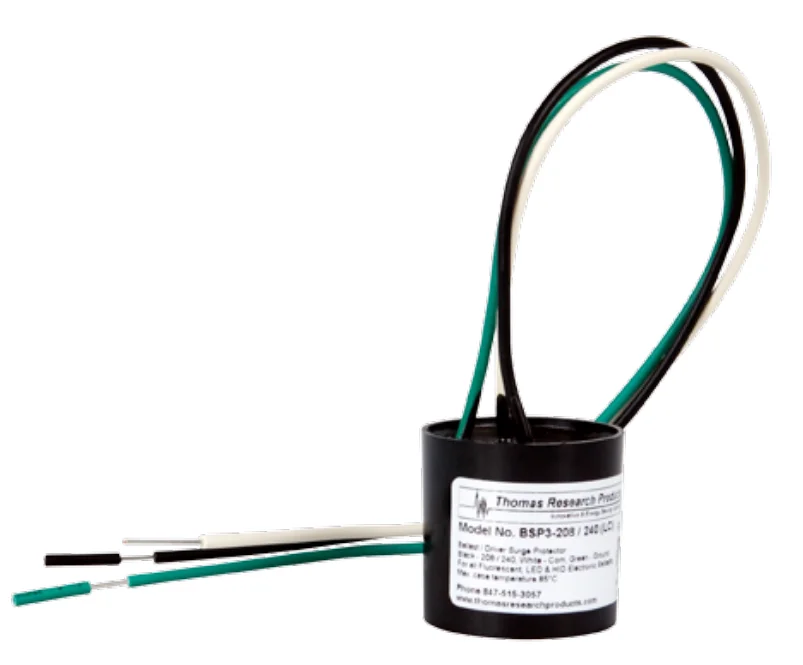

Thomas Research Products BSP3-208/240-LC LED Driver Compact Surge Protector, 208/240V main, IP65 rated
Thomas Research Products BSP3(LC) Series Compact 3-Pole LED Driver Surge Protectors
BSP3(LC) series products are designed for use in conjunction with LED Drivers and electronic fluorescent and HID ballasts to provide an additional level of protection against powerline disturbances in industrial and commercial applications. The main product feature of the LC series is being smaller and lower cost than the standard BSP3 series. The LC series also protect electronic fluorescent and HID ballasts.
208/240V Model: Protection for LED drivers capable of operating at 240V nominal input voltage or with universal input range of 120V through 240V. Not suitable for 120V-only devices.
Available in 120V, 208-240V, 277V, 347V, 480V models
Main Voltage: 208/240V
Continuous Max Voltage Rating: 275VAC 350Vdc
High temperature, flameproof plastic enclosure, 85ºC max surface temp rating
IP65 Rated
| Part Number | Mains Voltage | Continuous Max Voltage Rating |
Nominal Current (In) |
|
| BSP3-120 (LC) | 120V | 150VAC | 200VDC | 3kA |
| BSP3-208-240 (LC) | 240V | 270VAC | 350VDC | 3kA |
| BSP3-277 (LC) | 277V | 320VAC | 420VDC | 3kA |
| BSP3-277 (LC) | 347V | 420VAC | 560VDC | 3kA |
| BSP3-480 (LC) | 480V | 550VAC | 715VDC | 3kA |
Spec Sheets
Thomas Reseach BSP3 (LC) Series Specs
