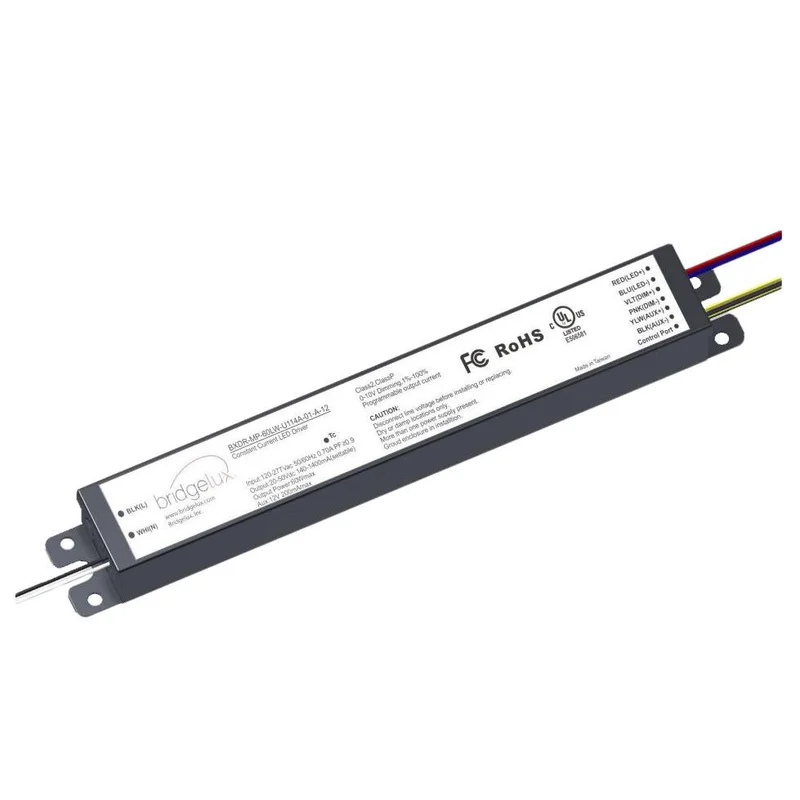

BXDR-MP-60LW-C114A-01-A-12 Bridgelux Pallas-A Programmable LED Driver – 60W 1400mA Dimmable Aux-Fast Shipping

Description

Bridgelux Pallas-A Series Linear LED Driver, 60W Max Output Power, Universal CAN 120/277/347V Input, Programmable Fixed Output Current of 140-1400mA (factory setting 1400mA), Output Voltage 20-50Vdc, Analog 0-10V Dimming 1%-100%, 12V Auxiliary

Bridgelux 60W Programmable Constant Current LED Driver

AC to DC Converter

Input Voltage: 120/277/347VAC

Output Voltage: 20-50VDC

Output Current: 140-1400mA programmable, FACTORY SET TO 1400mA

Class 2, Class P

Dry and Damp Rated, IP20

0-10V Analog Dimming 1%-100% via a standard commercial wall dimmer or external resistor

12V Auxiliary Source: Yes

Spec Sheets

Bridgelux BXDR-MP-60LW-C114A-01-A-12 Spec Sheet
