Cascada Spiral Clear Chandelier — vertical glass spiral cascade for stairwells, in 4 heights

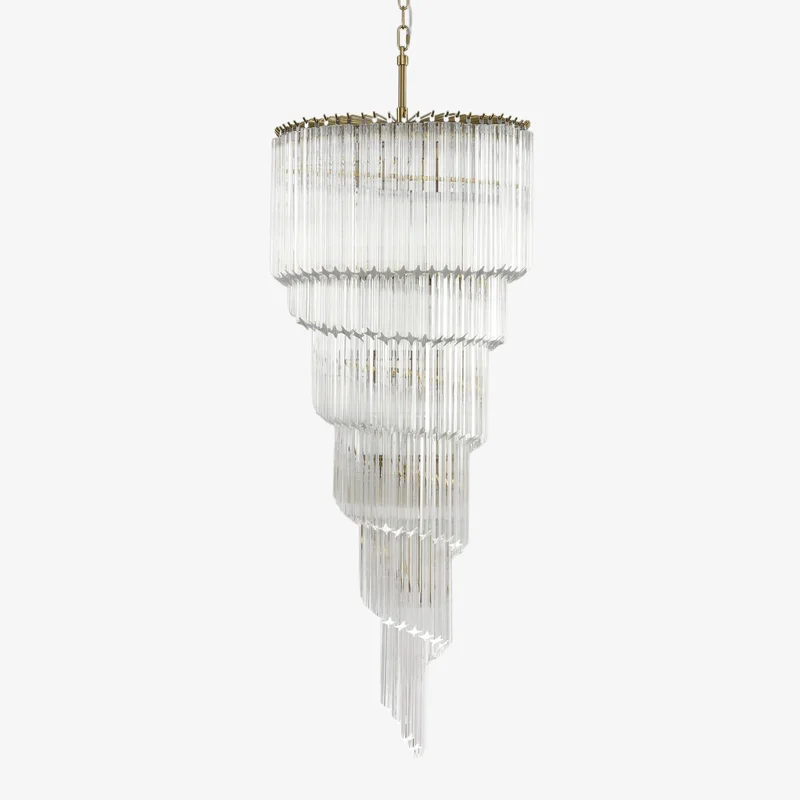

Available in four heights from 100 cm to 185 cm (39 inches to 6 feet), the Cascada Spiral is a vertical staircase-style chandelier with a single continuous spiral of clear glass tubes descending in a tapered helix. Each glass bar is precision-cut, refracting light into vertical streaks as the spiral turns, with a polished metal canopy and chain at the top. The smallest size already weighs 37 kg / 81 lb — the larger sizes more — so this is built for stairwell voids, multi-story foyers, and double-height entryways with reinforced ceiling support. Available in clear glass with a polished metal frame, with custom finish colors available on request.
⚠️ Heavy fixture — reinforced ceiling required
All sizes weigh 37 kg / 81 lb or more (larger sizes proportionally heavier). Standard residential drywall junction boxes are not rated for this load. The mounting location must use a heavy-duty fixture-rated junction box anchored to a ceiling joist or structural reinforcement — confirm with your electrician or contractor before ordering.
Hardwired install · LTL freight delivery
Ships in a custom crate via freight (curbside delivery). Hardwired into a heavy-duty junction box and installed by a licensed electrician — typically a two- or three-person job, with each glass tube individually packed and assembled in spiral sequence on site.
Features
Continuous spiral form
Single helix of clear glass, descends vertically.
4 heights
From 100 cm / 39″ to 185 cm / 6 ft drop.
Custom color option
Frame finish customizable on request.
Size & DropTap to enlarge size & color referenceSize AØ 15.7″ × H 39.4″Ø 40 × H 100 cm · 37 kg / 81 lb
Suits 11+ ft ceilings
Smaller foyer or low staircaseSize BØ 19.7″ × H 47.2″Ø 50 × H 120 cm
Suits 12+ ft ceilings
Mid-height stairwell, formal entrySize CØ 21.7″ × H 57.1″Ø 55 × H 145 cm
Suits 13+ ft ceilings or 2-story stairwell
Grand foyer, full staircaseSize DØ 23.6″ × H 72.8″Ø 60 × H 185 cm (~6 ft)
Suits 15+ ft ceilings or 3-story atrium
Grand stairwell, multi-story void
All sizes include an 11.8″ / 30 cm adjustable chain (extendable on request).
Recommended BulbSmall candelabra base · max 15 W per socket · warm white LED bulbs recommended. Bulbs not included.
Specifications
| Size A | Ø 40 × H 100 cm / Ø 15.7″ × H 39.4″ · 37 kg / 81 lb |
| Size B | Ø 50 × H 120 cm / Ø 19.7″ × H 47.2″ |
| Size C | Ø 55 × H 145 cm / Ø 21.7″ × H 57.1″ |
| Size D | Ø 60 × H 185 cm / Ø 23.6″ × H 72.8″ |
| Frame | Metal, nickel finish (custom colors on request) |
| Glass | Clear precision-cut tubes, spiral configuration |
| Light source | Small candelabra base — bulbs not included |
| Max bulb wattage | 15 W per socket |
| Voltage | AC 110–240 V |
| Wiring | Hardwired · 11.8″ / 30 cm chain (extendable on request) |
| Mounting | Ceiling, heavy-duty fixture-rated junction box anchored to joist |
| Control | Wall switch · Dimmable with dimmable LEDs + Triac dimmer |
| Customization | Frame finish color (on request) |
| Environment | Indoor only |
| Shipping | LTL freight (custom crate) |
| Certification | North America · EU · Australia · Saudi Arabia |
Frequently Asked QuestionsCan my ceiling support this fixture?
⚠️ The smallest size weighs 37 kg / 81 lb — larger sizes proportionally heavier. Confirm with your electrician or contractor before ordering: standard drywall junction boxes are not rated for this load, so a heavy-duty fixture-rated box anchored to a joist or structural reinforcement is required.
What ceiling height does each size fit?
Size A (100 cm / 39″) suits 11+ ft ceilings; Size B (120 cm / 47″) suits 12+ ft; Size C (145 cm / 57″) suits 13+ ft or staircase voids; Size D (185 cm / 73″) suits 15+ ft or 2–3 story atriums. Chain extendable on request.
How does it ship and install?
Ships LTL freight in a custom crate. Hardwired into a heavy-duty junction box by a licensed electrician — typically a two- or three-person job at the smallest size, with glass tubes packed individually and assembled in spiral sequence on site.
Can I get a different metal color?
Yes — the frame finish color is customizable on request. The standard configuration is nickel; contact us before ordering to discuss alternative finishes such as brass, gold, or black.
