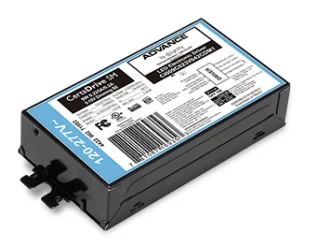

CI019C045V042CDD1 Advance CertaDrive SM Constant Current LED Driver – 19W 400/450mA Side-Entry-Fast Shipping

Description

Advance CertaDrive SM Point Constant Current LED Driver, 19W Max Power Output, Input 120V-277V, Fixed Field-Select 400mA or 450mA Output Current, 24-42V Output, Dimmable 0-10V Analog 10%-100%, Side Entry Feet Mount

Advance CertaDrive SM 19W 400mA/450mA Constant Current LED Driver – Side-Entry

100 – 277Vac, 19W, 400/450mA, 24-42V, [0-10V], IP20 LED Driver, Side Entry Feet Mount

Total Max Output Power: 19W

Constant Output Current 400mA or 450mA – Adjustable via Switch

Input Voltage: 120-277 VAC

Output Voltage Range: 24-42VDC

UL Damp and Dry

Dimmable 10%-100%, 0-10V Analog

Class 2 Wiring

Side Entry with Feet Mount

Spec Sheets

Advance Certadrive CI019C045V042CDD1 Spec Sheet
