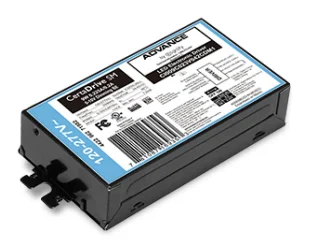

CI027C065V042CDM1 Advance CertaDrive SM Constant Current LED Driver – 27W 600mA/650mA Bottom-Exit-Studs-Fast Shipping

Description

Advance CertaDrive SM Point Constant Current LED Driver, 27W Max Power Output, Universal 120V-277V Input, Fixed Field-Select 600mA or 650A Output Current, 24-42V Output, Analog 0-10V Dimmable 1%-100%, Bottom Entry Studs

Advance CertaDrive SM 27W 600mA/650mA Constant Current LED Driver – Bottom-Studs

100 – 277Vac, 27W, 600/650mA, 24-42V, [0-10V], Bottom Entry Stud Mount

Total Max Output Power: 27W

Constant Output Current 600mA or 650mA – Adjustable via DipSwitch

Input Voltage: 120-277 VAC

Output Voltage Range: 24-42VDC

UL Damp and Dry

Dimmable 1%-100%, 0-10V Analog

Class 2 Wiring

Bottom Exit Stud Mount

Spec Sheets

Advance Certadrive CI027C065V042CDM1 Spec Sheet
