D10CC30UNVPW-LS Universal EVERLINE Programmable LED Driver – 30W 1050mA Compact-Studs-Fast Shipping

Description

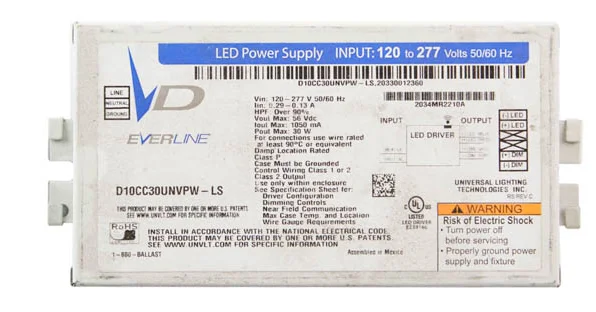

Universal Everline D10CC30UNVPW-LS Constant Current LED Driver, 30W power, programmable 100-1050mA (factory set 1050mA) fixed current output, 0-10V Dimming 1-100%, (-LS) Compact Case – Bottom Exit with Stud Mounting.

Universal Everline 30W Programmable Constant Current LED Driver

The EVERLINE PW series of Constant Current Linear LED Drivers features wireless programming, current output, dim to off and configurable dimming curves.

Constant Current LED Driver

0-10V Dimming to 1% standard or dim-to-off upon request.

Output Power 30W

Input Voltage: Universal 120~277V

Output Voltage: 16V to 29V @ 1.05 Amps 16V to 56V @ 0.53 Amps

Max Output Current 1050mA

Start Temp. (Min) -40C (-40F)

UL Damp/Dry location rated

Class 2 rated
