Description

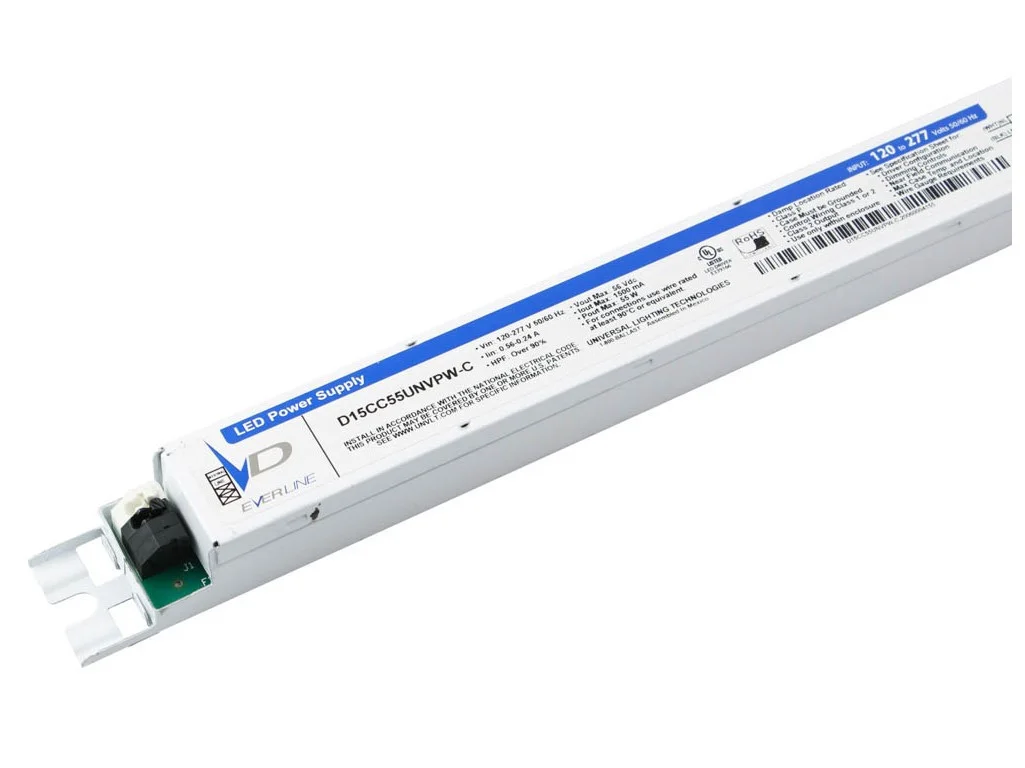

Universal Everline D15CC55UVPWA12-C Constant Current Programmable LED Driver, 55W 1500mA output, 0-10V Dimming to 1%, includes auxiliary port (1.2W 100mA, 12Vdc), plug-in wire connectors
Universal Everline 55W Constant Current 0-10V Dimmable LED Driver
The EVERLINE PWA series of Constant Current Linear LED Drivers features wireless programming, auxiliary output power, dim to off (programmable) and configurable dimming curves.
Constant Current LED Driver
0-10V Dimming to 1% standard or dim-to-off upon request.
Output Power 55W
Input Voltage: Universal 120-277V
Output Voltage: 15V to 37V @ 1.50 Amps; 15V to 56V @ 0.98 Amps
Max Output Current 450-1500mA
Start Temp. (Min) -40C (-40F)
UL Damp/Dry location rated
Class 2 rated
