Description
Universal Everline D28CC95UVPA12-VF Constant Current LED Driver, 95W, Programmable 450-2800 (Factory Set 2800mA) current output, 0-10V Dimming to 1-100%, auxiliary port (1.2W, 12Vdc, 100mA), 6kV transient protection, (-VF) Square Feet Mount.
| D28CC95UVPA12-VF Specs |

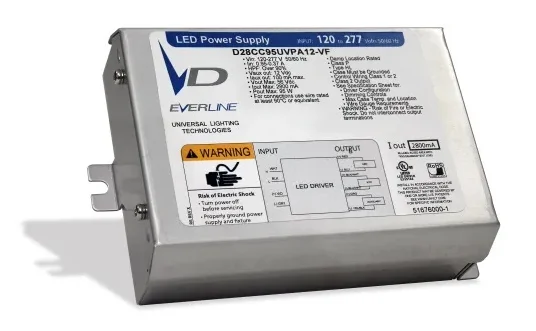

Universal Everline 95W Constant Current Dimmable LED Driver
The EVERLINE PA drivers with 1.2W Auxiliary output power , 6kV transient protection, full potting and Type HL rating are ideal for industrial applications such as high bay facilities and warehouses or outdoor applications such as area and street lighting.
Constant Current LED Driver
0-10V Dimming to 1% standard or dim-to-off upon request.
Output Power 95W
Input Voltage: Universal 120-277V
Output Voltage: 18V to 34V @ 2.80 Amps 18V to 56V @ 1.70 Amps
Max Output Current 2800mA
Start Temp. (Min) -40C (-40F)
UL Damp/Dry location rated
Class 2 rated
