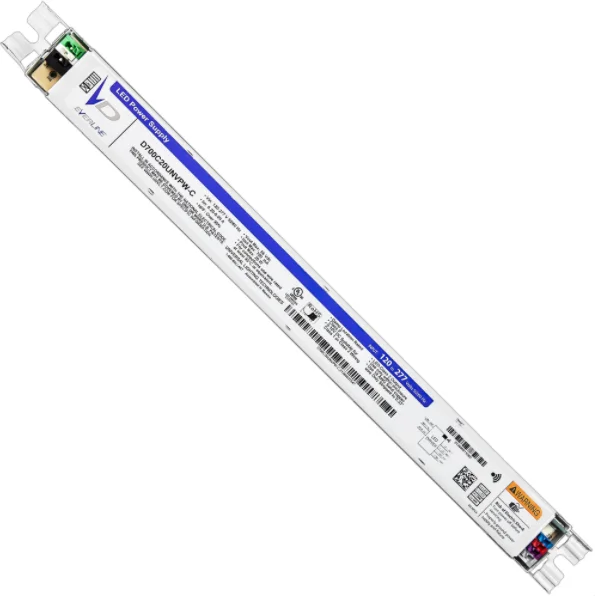

D700C20UNVPW-C Universal EVERLINE Programmable LED Driver – 20W 700mA Linear-Fast Shipping

Description

Universal Everline D700C20UNVPW-C Constant Current LED Driver, 20W Power, programmable 100-700mA (factory set 700mA) fixed current output, 0-10V Dimming 1-100%, plug in wire connectors, (-C) Linear Case Feet Mount

DISCONTINUED BY MANUFACTURER. Please review and order candidate replacement if appropriate for your application: Candidate Replacement

Universal Everline 20W Constant Current Programmable LED Driver

The EVERLINE PW series of Constant Current Linear LED Drivers features wireless programming, dim to off (programmable) and configurable dimming curves.

Constant Current LED Driver

0-10V Dimming to 1% standard or dim-to-off upon request.

Output Power 20W

Input Voltage: Universal 120~277V

Output Voltage: 16V to 29V @ 0.70 Amps 16V to 56V @ 0.36 Amps

Max Output Current 700mA

Start Temp. (Min) -40C (-40F)

UL Damp/Dry location rated

Class 2 rated
