Description
Magnitude Lighting Constant Voltage LED Driver, UL Recognized, 20W Max Power, 120V Input, Fixed 12Vdc Output, Output Current up to 1700mA, Phase Dimmable 1%-100%, NEMA Type 6

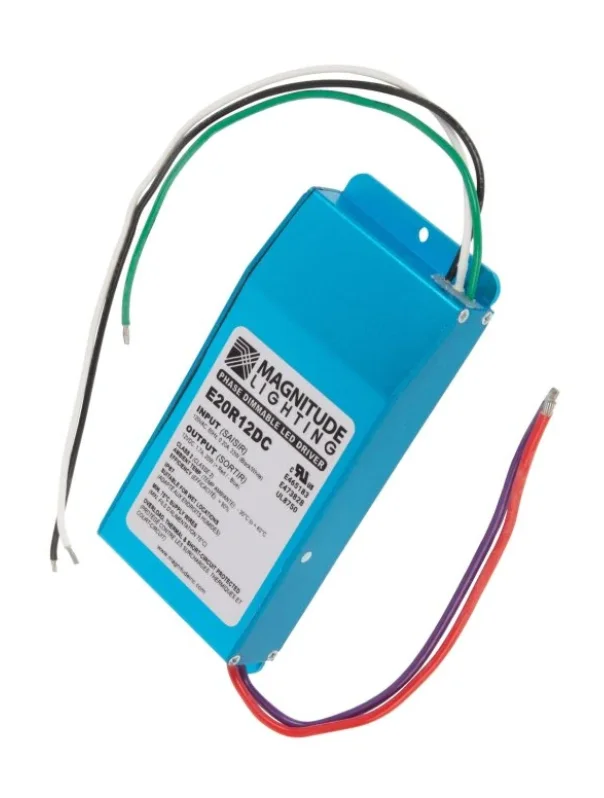

Magnitude 20W 12V Constant Voltage LED Power Supply – UL Recognized
Max 20W LED Power Supply
Input Voltage: 120VAC, Output Voltage: 12VDC
Current Output: up to 1.7A
Dimming: phase-dimmable down to 1% with leading edge TRIAC dimmers
IP67, NEMA Type 6
Class 2 power supply
UL 8750 Listed, UL 879 – Standard for electric sign components
UL Recognized
Spec Sheets
Magnitude E20R12DC Spec Sheet
Magnitude E20R12DC Intallation Guide
Magnitude E-Series Dimmer Compatibility List
