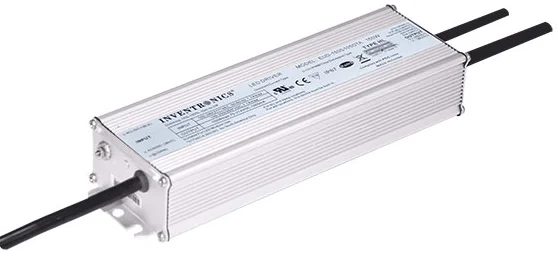

EUD-150S105DTA Inventronics Programmable Constant-Current LED Driver – 150W 700mA Aux-port-Fast Shipping

Description

Inventronics EUD-150S105DTA Constant Current LED Driver, 150W Max Power Output, Universal 120-277 Input, Output Current 700-1050mA (factory set at 700ma), 75-214Vdc Output, Auxiliary Port, Dimmable

Inventronics 150W Constant Current LED Driver

Programmable, Enabling Hundreds of Configurations

Controls-Ready

Always-On Auxiliary Power: 12V, 200mA

Dim-to-Off with Low Standby Power

Dimming Controls: 0-10V, PWM, Multiple Timers

High Level of Built-in Surge Protection:

6kV DM, 10kV CM

Output Lumen Compensation

Thermal Sensing and Protection for LED Module

Class 2 and SELV Output

IP67 and UL Dry/Damp/Wet Location

Type HL, for use in a Class I, Division 2 Hazardous (Classified) Location

Spec Sheets

Inventronics EUD-150S105DTA Spec Sheet
