Description
Inventronics Programmable Constant Current LED Driver, 150 Max Power Output, Universal 120-277V Input, Programmable Fixed Current Output 2450-3500mA (factory default 3150mA), 22-61Vdc Output, Analog 0-10V Dimming, Auxiliary Port, IP67

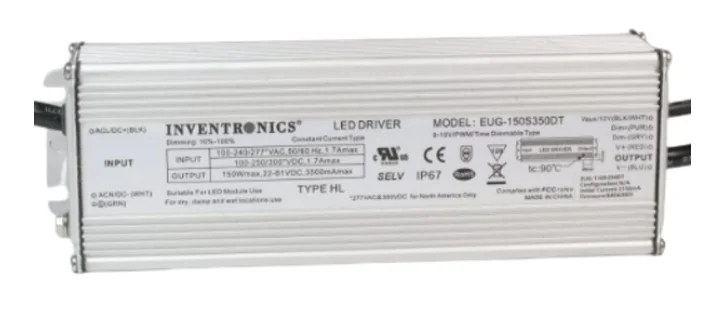

Inventronics Programmable LED Driver 150W 3150mA
Every LED array or fixture requires a driver to provide efficient power. At BallastShop we offer a wide array drivers to meet your power output and dimming requirements of virtually any LED in the marketplace.
Total Power: 150 Watts
Programmable current output 2450-3500mA (factory default set at 3150mA)
Input Voltage: 90-305 VAC
Waterproof (IP67): Waterproof (IP67) and UL Dry / Damp / Wet Location.
TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
12V Auxiliary Output Voltage
Efficiency up to 92.5%
Operating temperature range: -40°C to 65°C
Dimming: 0-5V/0-10V/PWM/Timer Dimmable
Spec Sheets
Inventronics EUG-150S350DT Specs
