EUM-100S280DT Inventronics Constant-Current-Programmable LED Driver – 100W 2100mA Dimmable-Fast Shipping

Description

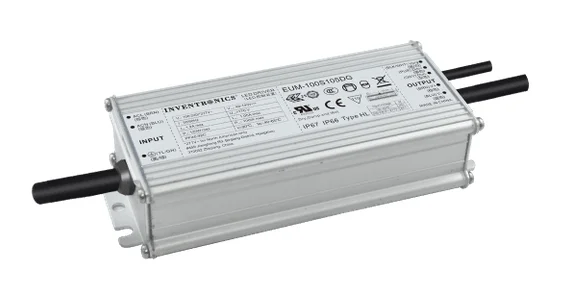

Inventronics EUM-100S280DT Constant Current 100W LED Driver, Universal 120-277V input, Programmable 1750-2800mA Output Current (factory set at 2100mA), 17-54V Output,, Analog and PWM Dimmable, IP67

Inventronics 100W Constant Current LED Driver

Programmable, Enabling Hundreds of Configurations

Compact Metal Case with Excellent Thermal Performance

Dimming Controls: Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable

Input Surge Protection: DM 6kV, CM 10kV

Output Lumen Compensation

Class 2 and SELV Output

IP66 / IP67 and UL Dry / Damp / Wet Location

TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location

UL Class P

Spec Sheets

Inventronics EUM-100S280DT Specs
