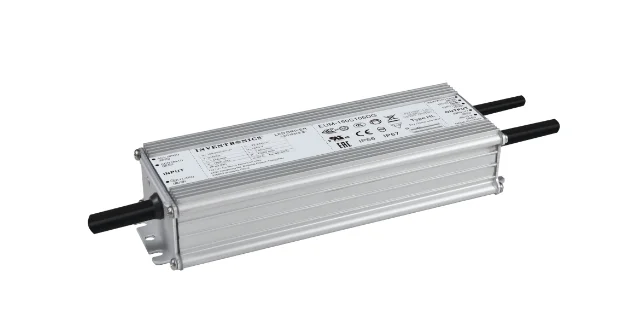

EUM-200S105DG Inventronics Constant-Current-Programmable LED Driver – 200W 700mA Dimmable-Fast Shipping

Description

Inventronics EUM-200S105DG Constant Current LED Driver, 200W Max Power Output, Universal 120-277V Input, Programmable 700-1050mA (factory set at 700mA) Output Current, 95-286V Output, Analog/PWM/Timer Dimming

Inventronics 150W Constant Current LED Driver

Programmable, Enabling Hundreds of Configurations 700mA to 1050mA (factory default 700mA)

Compact Metal Case with Excellent Thermal Performance

Dimming Controls: Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable

Input Surge Protection: DM 6kV, CM 10kV

Output Lumen Compensation

Class 2 and SELV Output

IP66 / IP67 and UL Dry / Damp / Wet Location

TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location

Spec Sheets

Inventronics EUM-200S105DG Specs
