FIELDSET OTI 25W UNV 1A2 1DIM DIM-1 FS eldoLED OPTOTRONIC (284G0V ) Constant-Current Field-Programmable LED Driver – 25W 500mA Dimmable-Fast Shipping

Description

FieldSET/OTi25W/UNV/1A2/1DIM/DIM-1/FS Constant Current Programmable Compact LED Driver, 25W Max Power Output, Universal 120-277V Input, Field Programmable Output Current 150-1250mA (factory setting 500mA), Output Voltage 8-55VDC, Dimming 0-10V Analog 1-100%, IP20

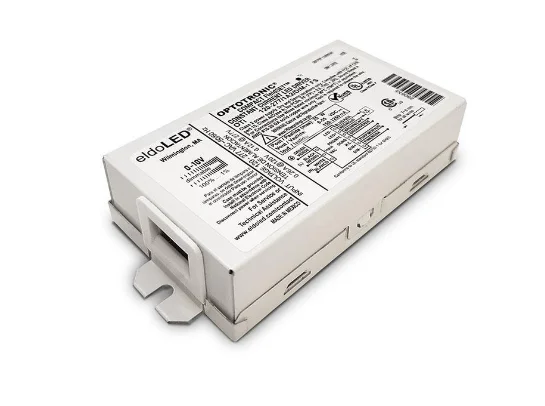

eldoLED Optotronic 25W Field-Programmable Constant Current LED Driver

Constant Current AC DC Power Supply

Max Output Power: 25W

Output current programmable in 1mA increments 150-1250mA (factory default 500mA)

Input Voltage: 120-277 VAC

Output Voltage: 8-55V DC

0-10V Analog Dimming, Range 1%-100% (dim-to-off is programmable)

Damp/Dry IP20 location rated

F Style Housing: Feet Mounting, Side Exit

Case Size 20: Box Markings: FIELDSET OTI 25W UNV 1A2 1DIM DIM-1 FS J20, CI Code *2806X5, UPC 196183325228

Osram Optotronic is now part Acuity eldoLED Optotronic brand family

eldoLED Optotronic FieldSET Programmable LED Drivers

Spec Sheets

OPTOTRONIC FIELDSET OTi 25W UNV 1A2 1DIM DIM-1 FS (*284G0V ) Specification Sheet

FieldSET Programmable LED Drivers for Field Replacement

FieldSET Programmer Tool Overview
