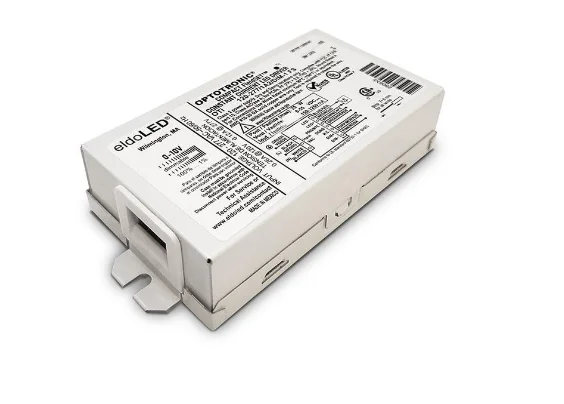

FIELDSET OTI 40W UNV 1A4 1DIM DIM-1 FS eldoLED OPTOTRONIC (284G0X) Constant-Current Field-Programmable LED Driver – 40W 700mA Dimmable-Fast Shipping

Description

FieldSET/OTi40W/UNV/1A4/1DIM/DIM-1/FS Constant Current Programmable Compact LED Driver, 40W Max Power Output, Universal 120-277V Input, Field Programmable Output Current 400-1400mA (factory setting 700mA), Output Voltage 8-55VDC, Dimming 0-10V Analog 1-100%, Feet-Mount, IP20

eldoLED Optotronic 40W Field-Programmable Constant Current LED Driver

Constant Current AC DC Power Supply

Max Output Power: 40W

Output current programmable in 1mA increments 400-1400mA (factory default 700mA)

Input Voltage: 120-277 VAC

Output Voltage: 8-55V DC

0-10V Analog Dimming, Range 1%-100% (dim-to-off is programmable)

Damp/Dry IP20 location rated

F Style Housing: Feet Mounting, Side Exit

Case Size 20: Box Markings: FIELDSET OTI 40W UNV 1A4 1DIM DIM-1 FS J20, CI Code *2806X9, UPC 196183325358

Osram Optotronic is now part Acuity eldoLED Optotronic brand family

eldoLED Optotronic FieldSET Programmable LED Drivers

Spec Sheets

OPTOTRONIC FIELDSET OTi 40W UNV 1A4 1DIM DIM-1 FS (*284G0X) Specification Sheet

FieldSET Programmable LED Drivers for Field Replacement

FieldSET Programmer Tool Overview
