Description
Hatch Foundation Series LED Driver, Programmable Constant Current, 15W Max Output Power, Universal 120-277V Input, Fixed Output Current 150-350mA (factory default 350mA), 20-42Vdc Output, Tri-Dim (TRIAC, ELV, 0-10V), Dry/Damp Location Rated, Bottom Leads with Studs

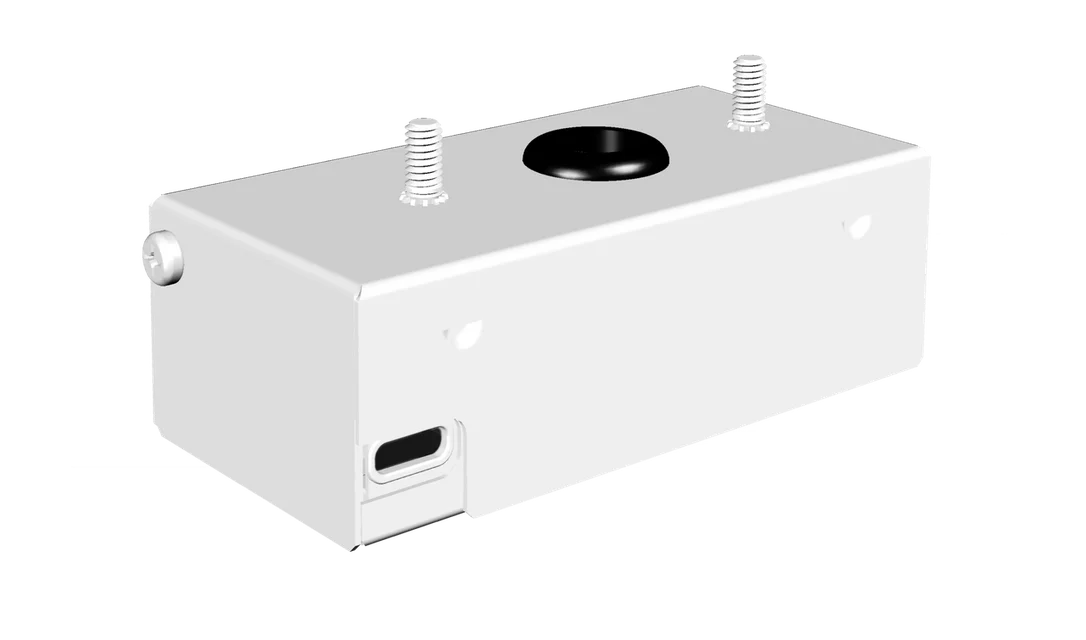

Hatch 15W 150-350mA Constant Current Programmable LED Driver – Bottom Exit Studs
Every LED array or fixture requires a driver to provide efficient power. At BallastShop we offer a wide array drivers to meet your power output and dimming requirements of virtually any LED in the marketplace.
Total Power: 15 Watts
Output Current: 150-350mA programmable, FACTORY DEFAULT 350mA
Input Voltage: 120-277 VAC
Output Voltage: 20-42VDC
Tri-Dim (TRIAC, ELV, 0-10V)
UL Dry & Damp Location Rated IP66
Class 2
Operating temperature range: -40°C to 85°C
Polycarbonate Housing
Tri-Dim Capability (1% for Triac, ELV and 0-10V)
Spec Sheets
FTY15-0350T-42-UNV Specifications
