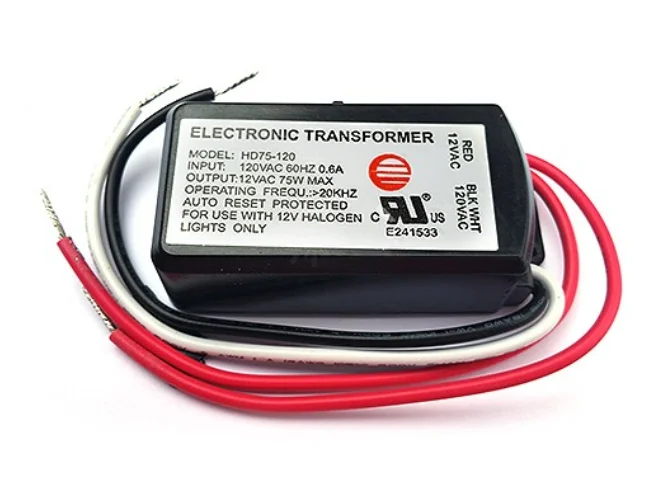

HD75-120 (BSET-75 / LVT-75B) Electronic Halogen Transformer – 75W 120V-to-12V-Fast Shipping

Description

HD75-120 Halogen Electronic Transformer, 120VAC Input – 12VAC Output, 75 Watt Max Power Output, Dimmable

LED Halogen Power Supply 75W Transformer 120V in/12V out

Replacement Electronic Halogen Transformer for use with 12VAC Halogen applications. Fully Dimmable with Standard Incandescent as well as Low-Voltage Dimmers on the input side. Short Circuit and Overload Protection.

2 Red, 1 Black, 1 White lead

Short Circuit Protection

Load: 75W max, 20W min

Input: 120Vac, 0.6A

Dimming function on the input voltage side

Replacement candidate for MDL Corp 316-0011 AND 316-0001, LVT-75B, BSET-75, SL-518, TST-75, 250LT2512, Delta-Teleios 42047, GE Lightech LET-75, Hatch RS12-75RW and RS12-75A

Spec Sheets

HD75-120 Halogen Transformer Spec Sheet
