Description
Mean Well Constant Current + Constant Voltage LED Driver, 320W Max Power Output, 180-528VAC Input, 27-54VDC Output Voltage, 3000-6000mA Output Current, IP67/IP65 Rated

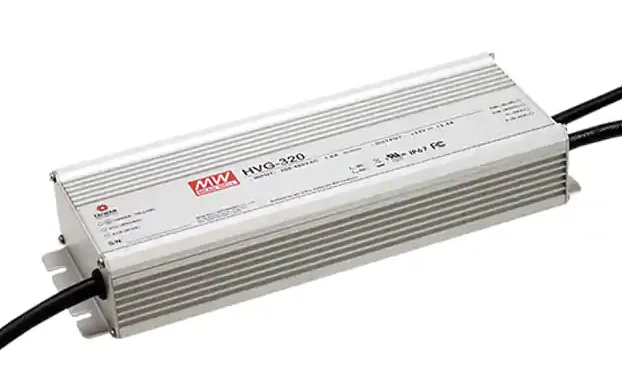

Mean Well 320W LED Driver – Dual Mode
HVG-320 series is a 320W AC/DC LED driver featuring the dual mode constant voltage and constant-current output. This series is able to work in either Constant Current mode (a direct drive way) or Constant Voltage mode (usually through additional DC/DC driver) to drive the LEDs.
HVG-320-54B Specifications:
B version – Constant current level adjustable through output dimming leads with Analog 0-10VDC or 10V PWM sign or resistance dimmer
Total Max Output Power: 320 Watts
Input Voltage: 180-528 VAC
IP rating: IP67 / IP65 Damp/Dry/Wet for Indoor and Outdoor application
See Specification sheet for details
Spec Sheets
Mean Well HVG-320-54B Spec Sheet
