Description
KEYSTONE Circular LED Retrofit Kit, 8 in, 1600 Lumens, 3000K Soft White Color Temperature, 0-10V Dimming. See Below – Easy to Install Product Video

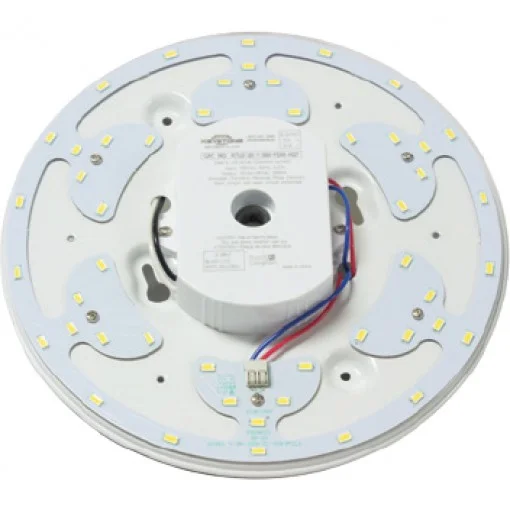

Circline LED Retrofit Kit
Easy to retrofit CFL circline ceiling and ceiling fan fixtures to LED!
Kit includes the Following
LED Driver
LED Module
Metal Pan
Mounting Accessories (threaded rod, mounting hardware, and wiring hardware)
Module Features
For Use in Class 2 Lighting Systems
Highly Reflective White Soldermask
Low Profile WAGO Push Connectors
UL Recognized Components
Single-Sided CEM3 Substrate
3-Step MacAdam Color Binning
LM80 Tested LEDs by Samsung
Beam Angle: 120º
Reported Life Expectancy: L70> 36,000 hours at Tc < 85ºC
Calculated Life Expectancy: L70 = 93,000 hours at Tc < 85ºC
Maximum Board Temperature at Tc Point: 85ºC
Driver Features
Dimming: 0-10V
High Power Factor
UL 8750 Recognized Component LED Power Unit
Meets FCC Part 15 Class B (Consumer) Limit for EMI
Over Current, Short Circuit, and Open Circuit Protection
Class 2 Output
Type 1 Outdoor, Suitable for Dry and Damp Locations
Up to 194ºF/90ºC Maximum Case Temperature
