Description
Keystone KTLD-100-UV-24V-MC2 MicroCase Constant Voltage LED Driver, 100W Max Power Output, Universal 120-277V AC Input, Fixed 24VDC Output Voltage, 4 Amp Max Output, Non-dimming

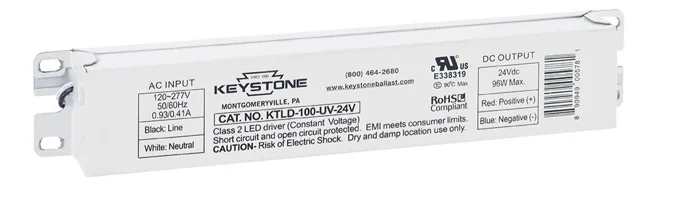

Keystone 100W 24VDC MicroCase Constant Voltage LED Driver
Constant voltage drivers are required when another LED current controlling device, such as a built in resistor or regulating driver, is already connected directly to the LED load. Keystone offers constant voltage LED drivers in 12V and 24V platforms.
100 Watt Output
Input Volts 120-277 – Output Volts 12.0Vdc
Meets FCC Part 15 Class B (Consumer Limit) at 120V Input and Class A (Non-Consumer Limit) at 277V Input
Over Current and Short Circuit Protection
Type 1 Outdoor for Dry and damp location rated
Class 2 output
Lead wires are 203mm, Stranded and Tinned 9.5mm, 18AWG, 105°C, 300V
Operating Temperature -20 to 50°C
Spec Sheets
Keystone KTLD-100-UV-24V-MC2 Spec Sheet
