Description

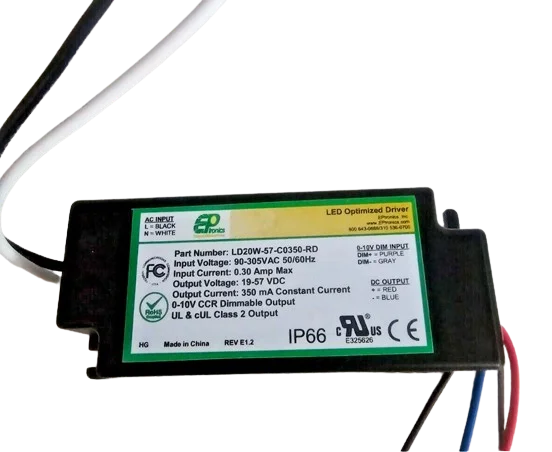

LD20W-57-C0350-RD EPtronics 20W Constant Current LED Driver, Universal input 120-277V, 350mA current output, 19-57Vdc output, 0-10V Analog Dimmable
EPtronics 20W 350mA Constant Current Power Supply- Dimming
Total Power: 20 Watts
Input Voltage: 90-305 VAC
Dimming:0-10V Analog or Resistance
IP66 – Water resistant and Dust Proof, NEMA4 for Dry, Damp, Wet Locations
Class 2 Wiring: Yes
Black Plastic Case, Fully Encapsulated
-RD 0-10V & Resistance dimmable version comes with an extra two wires +VIOLET/-PINK on the output side. (Legacy DIM- = GRAY)
Spec Sheets
EPtronics LD20W-57-C0350-RD Spec Sheet
