Description
Advance Xitanium Constant Current LED Driver, Select 28W or 39W Max Power Output, Universal 120-277V Input, Fixed 350mA or 520mA Output Current, 40-77V Output Voltage, Analog 0-10V Dimming 10-100%, Bottom Exit Studs

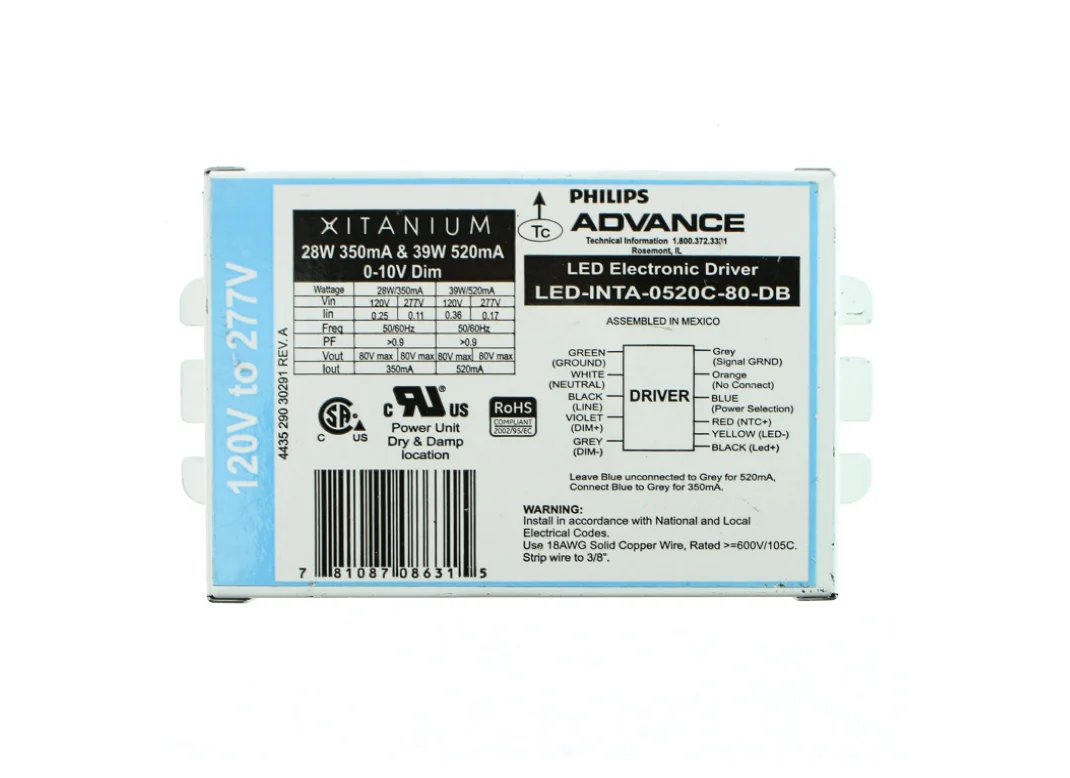

Advance Xitanium 28W/350mA 39W/520mA LED Driver
Leave Blue wire unconnected to Grey for 520mA, Connect Blue to Grey for 350mA
Dimming Range: 0-10V, 100%-10%
Total Max Output Power: 28W or 39W (connect blue to gray for 28W max)
Input Voltage: 120 to 277V
Output Current: 350mA or 520mA (connect blue to gray for 350mA fixed)
Total Output Voltage: 40-77V
Isolation: Class 2
UL Damp and Dry
Operating Temperature: -40°~ 90°C
Bottom Exit Studs (2.0″ on center)
Spec Sheets
Advance Xitanium LEDINTA0520C80DB Specs
