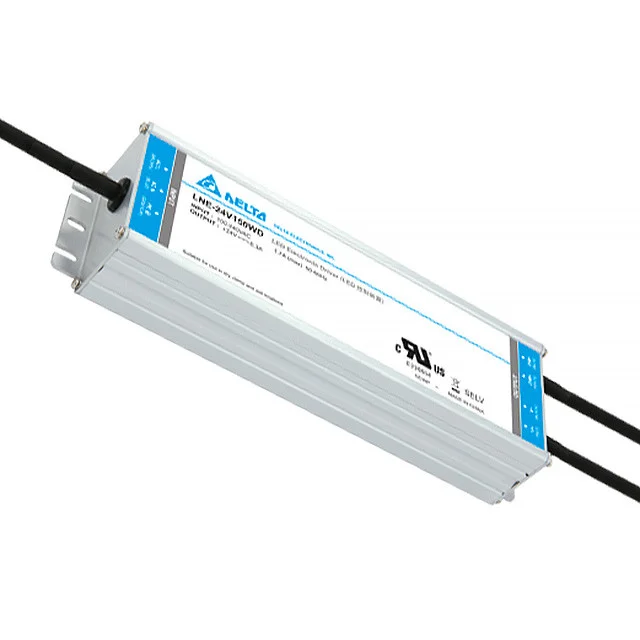

LNE-24V150WDAA Delta Constant-Power LED Driver – 150W Dimming-Fast Shipping

Description

Delta LNE-24V150WDAA Configurable Constant Power (Adjustable current and voltage) 150W LED Driver, Dimming, 90-305Vac input, adjustable 24Vdc and 6300mA output.

Delta 150W 6300mA / 24VDC Adjustable Dimming LED Driver

Programmable, Enabling Hundreds of Configurations – potentiometers to adjust output voltage & constant current (CC) level

Output Current Range: 3150-6300mA

Output Voltage Range: 12-24Vdc in CC mode and 22-27Vdc in CV mode

Dimming Controls: Analog (0-10V), PWM

IP67 and UL Dry/Damp Location

High surge immunity (common mode: 6kV, differential mode: 4kV)
