Description
INVENTRONICS LED Driver, Constant Current, 12W Max Power Output, Universal 120-277V Input, Fixed 700mA Output Current, 9-17Vdc Output, 0-10V Dimming, IP20 Location Rated

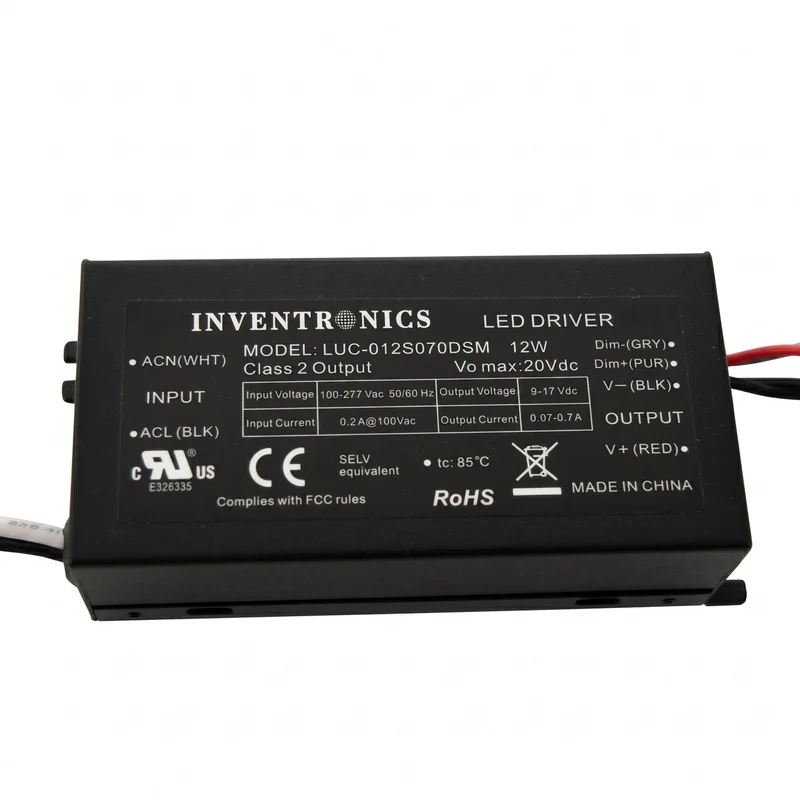

INVENTRONICS 12W 700mA Constant Current LED Driver – Metal Case
Inventronic LUC 12W Series are constant-current IP20 LED drivers that operate from 90-305V and are ideal for down, panel and tube lighting applications.
Total Power: 12 Watts
Fixed Output Current: 700mA
Input Voltage: 90-305 VAC
IP20 Rated
Class 2
Efficiency 85%
Operating temperature range: -20°C to 85°C
Polycarbonate Housing
Analog 0 – 10V Dimmable (Compatible with Passive Dimmers)
Active Power Factor Correction
All-Around Protection: OVP, SCP and Open Lamp Protection
Spec Sheets
Inventronics LUC-012S070DSM Specification Sheet
Inventronics Model Part Number Scheme
