Description

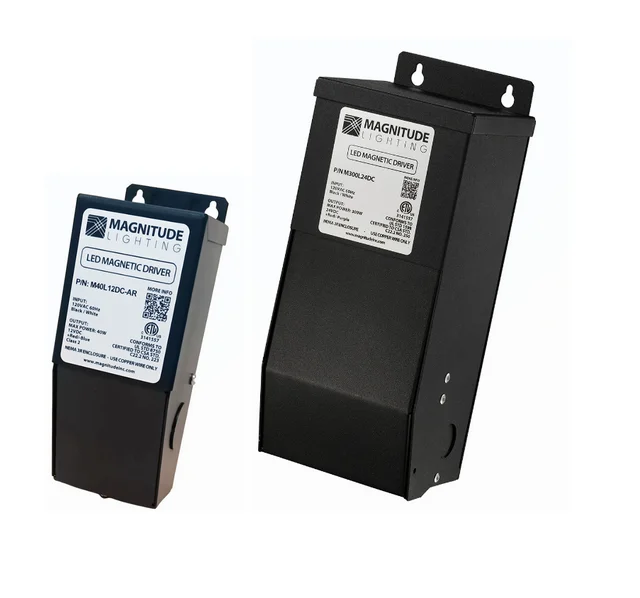

Magnitude Lighting Constant Voltage Magnetic (M-Series) LED Driver in Junction Box, 20W/40W/60W/96W/100W/150W/200W/300W Max Power Output, 120V Input, Fixed 12Vdc or 24Vdc Output, Output Current (see data sheet), Dimmable via Phase-cut Leading (Forward) Edge MLV TRIAC Dimmer, NEMA 3R Junction Box
Magnitude Lighting Magnetic (M-Series) Constant Voltage LED Power Supply
Max Power Output Options: 20W/40W/60W/96W/100W/150W/200W/300W
Input Voltage: 120VAC,
Output Voltage Options: 12VDC/24VDC
Current Output: Varies based on model selected – see specification sheet provided
Dimming: Phase-dimmable down to 1% with leading (forward) edge MLV TRIAC dimmer only (Note: Cap dimming leads if not dimming)
Class 2: 20W/40W/60W/96W
Auto Reset: 20W/40W/60W/96W/100W/150W
Manual Reset: 200W/300W
UL Listed enclosure. Wiring compartment with 7/8″ knockouts
ETL Listed
| Part Number | Max Load | Input | Output | Dimming | Class 2 | Reset | Environment |
| 12VDC Output Voltage | |||||||
| M20L12DC-AR | 20W | 120VAC | 12VDC | Phase | Yes | Auto | Dry and Damp |
| M40L12DC-AR | 40W | 120VAC | 12VDC | Phase | Yes | Auto | Dry and Damp |
| M60L12DC-AR | 60W | 120VAC | 12VDC | Phase | Yes | Auto | Dry and Damp |
| M100L12DC-AR | 100W | 120VAC | 12VDC | Phase | Auto | Dry and Damp | |
| M150L12DC-AR | 150W | 120VAC | 12VDC | Phase | Auto | Dry and Damp | |
| M200L12DC | 200W | 120VAC | 12VDC | Phase | Manual | Dry and Damp | |
| M300L12DC | 300W | 120VAC | 12VDC | Phase | Manual | Dry and Damp | |
| 24VDC Output Voltage | |||||||
| M20L24DC-AR | 20W | 120VAC | 24VDC | Phase | Yes | Auto | Dry and Damp |
| M40L24DC-AR | 40W | 120VAC | 24VDC | Phase | Yes | Auto | Dry and Damp |
| M60L24DC-AR | 60W | 120VAC | 24VDC | Phase | Yes | Auto | Dry and Damp |
| M96L24DC-AR | 96W | 120VAC | 24VDC | Phase | Yes | Auto | Dry and Damp |
| M150L24DC-AR | 150W | 120VAC | 24VDC | Phase | Auto | Dry and Damp | |
| M200L24DC | 200W | 120VAC | 24VDC | Phase | Manual | Dry and Damp | |
| M300L24DC | 300W | 120VAC | 24VDC | Phase | Manual | Dry and Damp |
Spec Sheets
Magnitude M-Series Spec Sheet
Magnitude M-Series 12VDC Installation Guide
Magnitude M-Series 24VDC Installation Guide
Magnitude M-Series 12VDC Dimmer Compatibility List
Magnitude M-Series 24VDC Dimmer Compatibility List
