Description

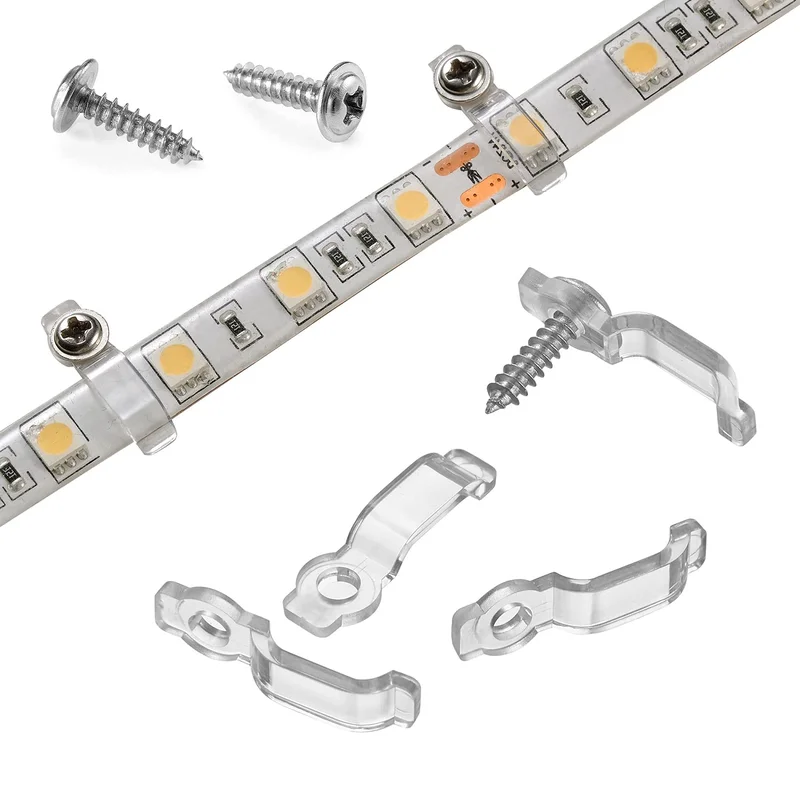

These LED strip light mounting clips are upgrading design,Compare with traditional one-side fix clip have fellow advantages:
1)Widen and tight: hollow heigh only 2.2mm/0.08inch (the old one is 3.0mm) so this led mounting bracket more firmly fix IP65 waterpoof led tight
never worry about the led strip light slide or drop.
2)Pure transparent: light transmittance from 90% increase to 98% more easy to hide in plain sight.
Note:Before buy this led strip mounting brackets pls check up your led strip light width and height.
suit for 10mm/0.39inch width silicone glued(IP65) flexbile led strip light which is DC12V/24V
SMD3528 120/128/140leds/meter
SMD2835 120/128/144/168leds/meter
SMD5050 30/60/72leds/meter RGB/RGBW/CCT color
SMD5630 30/60/72leds/meter
COB 480/512/608/804leds/meter
not use for IP20/IP67/IP68 led strip light or led rope light.
Suit for led strip light connect wire type:18AWG, 20AWG
Use and Installation:
installing the clips. Please make sure the light power trun off.
drill tools punch holes in cement wall/tile wall/thick metal surface and make the wood/thin metal surface no need puch holes in advance
screws through the clips and then fixed the screws in the marked holes(Please be careful not to tighten it completely).
led strip continue to tighten the screw until the clip completely the light strip.
all fixed clips.
suggest using 3-5 pieces clips within 1 meter long strip lights
Specific Details:
Product Size: L:22.6mm/0.89inch Width:6.90mm/0.27inch Height:3.90mm/0.15inch.
Inner Width: 10.5mm/0.41inch
Inner Height:2.2mm/0.08inch
Operate temperature:-20°C-65°C
Flame retardant rating: UL94V-0
Material:Polycarbonate
Package Includes:
100 pcs led strip fixing clips(transparent)
102 pcs screws
