Description
NX Lighting (Current / Hubbell) UL924 Emergency Lighting Load Controller, 120/277/347V Input, Single Pole Relay with Dual 0-10V, CAT5 Connection, 24V low voltage port, SpectraSync Color Tuning, Plenum rated with 1/2″ nipple

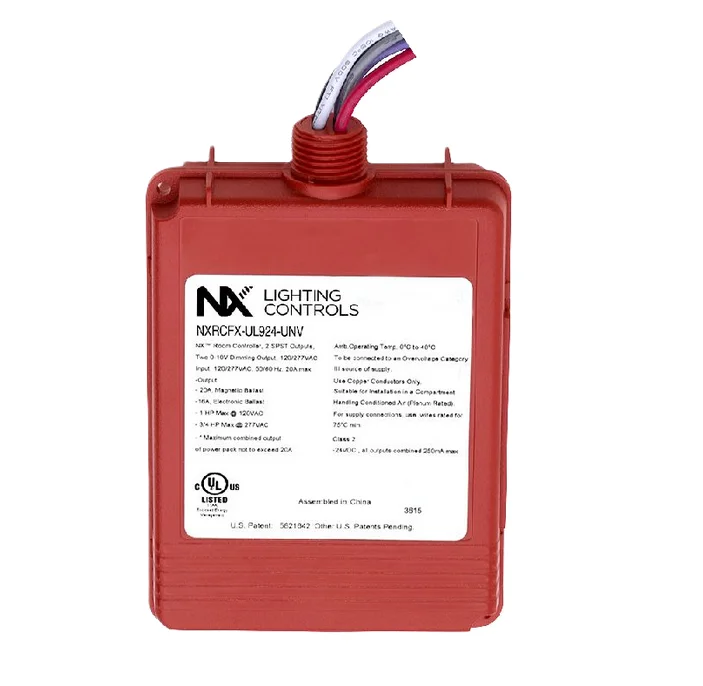

NX Lighting NXRCFX-UL924-UNV (UL924) Emergency Lighting Load Control Relay
NX Emergency Lighting Load Controller, one single pole relay, one 0 – 10 dimmer, one color control channel
Features
Automatically overrides lighting to emergency state upon loss of normal power
Meets NFPA Article 700 requirements for emergency lighting
Utilizes CAT5 connection to standard NX room controller for normal power sensing
Meets NEC Article 700 requirements for emergency lighting
Dual voltage, 120 or 277V operation
Full range continuous dimming defaults to full ON
Color channel defaults SpectraSync luminaires to full white to user selected color temperature
Provision for remote test button or fire alarm interface
Suitable for use in return air plenums
Mounts directly to an external junction box through extended ½” chase nipple
California Title 24 Compliant
Buy American Act (BAA) Compliant
Note: NXRCFX-UL924-UNV can only be used with LVS-ERTB-PL-WH Test Switch
Electrical
20A, Tungsten, 120VAC Only
Ballast: 20A Magnetic, 16A Electronic
HP Rating: ½ HP, 250V, ¼ HP, 120V
Motor Controller Rating: 1 H.P. Motor @12OVAC; 3/4 H.P @277VAC; 1/2H.P. @347VAC
Spec Sheets
NX Lighting NXRCFX-UL924-UNV Spec Sheet
NX Lighting NXRCFX-UL924-UNV Installation Instructions
