Description
Optotronic Constant Current Outdoor LED Driver, 50W Max Power Output, Universal Input 120-277V, Programmable (Free prior to shipping) Fixed Output Current 600-1250mA (700mA Factory Default), Output Voltage 15-55VDC, 0-10V Analog Dimming 10-100%, Dry/Damp/Wet Rated

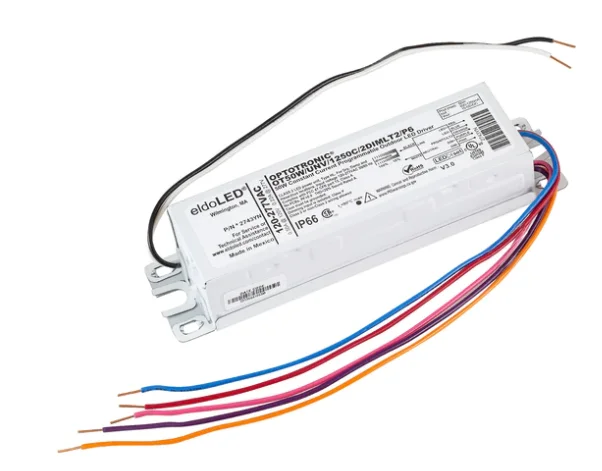

Optotronic 50W 700mA Programmable Outdoor LED Driver
50W Max Power Output
Fixed Output Current: Programming Range 600-1250mA, Factory Default 700mA
Input Voltage: 120-277 VAC
Output Voltage: 15-55 VDC
0-10V Analog Dimming 10%-100%
Damp and Wet Rated, IP66
Feet mounting
Note: Sylvania Optotronic and Osram Optotronic are now part Acuity eldoLED Optotronic brand family
| OPTOTRONIC Programmable Constant Current Outdoor/Industrial Dimmable LED Drivers | |||||||||||
| GEN 1 | GEN 2 | ||||||||||
| CI CODE | Model (link) | Max Power Output | Programmable Output Current Range | Default Setting | SPEC SHEET | CI CODE | Model (link) | Max Power Output | Programmable Output Current Range | Default Setting | SPEC SHEET |
| *2743YM | OT 50W UNV 800C 2DIM P6 | 50W | 350-800mA | 530mA | SPEC SHEET | *275TJ6 | OTI 50W UNV 800C G2 2DIM P6 | 50W | 175-800mA | 530mA | SPEC SHEET |
| *2743YN | OT 50W UNV 1250C 2DIM P6 | 50W | 600-1250mA | 700mA | SPEC SHEET | *275TJX | OTI 50W UNV 1250C G2 2DIM P6 | 50W | 300-1250mA | 700mA | SPEC SHEET |
| *2743YK | OT 100W UNV 800C 2DIM P6 | 100W | 350-800mA | 530mA | SPEC SHEET | *276YY9 | OTI 100W UNV 800C G2 2DIM P6 | 100W | 175-800mA | 530mA | SPEC SHEET |
| *2743YL | OT 100W UNV 1250C 2DIM P6 | 100W | 600-1250mA | 700mA | SPEC SHEET | *276YYC | OTI 100W UNV 1250C G2 2DIM P6 | 100W | 300-1250mA | 700mA | SPEC SHEET |
| *2743YH | OT 180W UNV 800C 2DIM P6 | 180W | 350-800mA | 530mA | SPEC SHEET | *275TK8 | OTI 180W UNV 800C G2 2DIM P6 | 180W | 175-800mA | 530mA | SPEC SHEET |
| *2743YJ | OT 180W UNV 1250C 2DIM P6 | 180W | 600-1250mA | 700mA | SPEC SHEET | *275TKE | OTI 180W UNV 1250C G2 2DIM P6 | 180W | 300-1250mA | 700mA | SPEC SHEET |
Spec Sheets
OT50W/UNV/1250C/2DIMLT2/P6 OPTOTRONIC (79371/*2743YN) Spec Sheet
OPTOTRONIC Programmable Constant Current Outdoor Dimmable LED Driver Series
