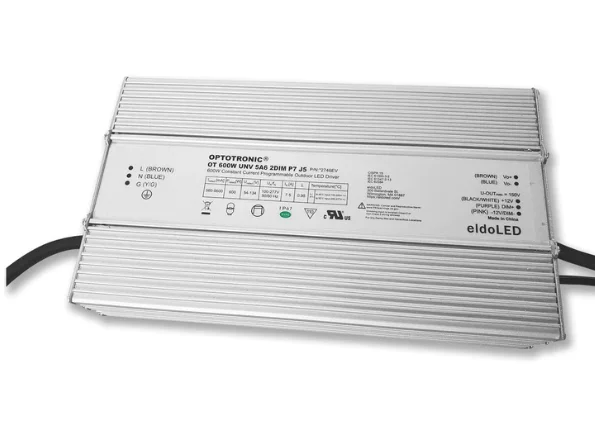

OT600/UNV/5A6/2DIM/A/P7 OPTOTRONIC (57341/2746EV) Horticulture Programmable LED Driver – 600W 5600mA IP67 Aux-port-Fast Shipping

Description

OT600/UNV/5a6/2DIM/A/P7 eldoLED OPTOTRONIC Horticulture P7 Series, Programmable Constant Current Dimmable LED Driver, 600W Max Power Output, Universal 120-277V Input Voltage, Programmable Output Current 2800-5600mA (factory set at 5600mA), Output Voltage 54-134VDC, 0-10V Analog Dimming 10-100% Range, Auxiliary Output, IP67 Rated

Optotronic 600W Horticulture LED Driver

600W LED Power Supply

Input Voltage: 120-277 VAC

Output Voltage: 54-134 VDC

Output Current: Factory Set at 5600mA, Programmable 2800-5600mA in 1mA increments

3-in-1 dimmable: 0-10Vdc, PWM, AstroDIM with range 10%-100% and dim-to-off

Class 2 or non-Class 2 wiring allowed

UL Dry, Damp and Wet, IP67 Rated

Feet mounting

Auxiliary output 12V, 300mA

Spec Sheets

OPTOTRONIC OT600/UNV/5A6/2DIM/A/P7 (57341/*2746EV) Specs

OPTOTRONIC Horticulture P7 Series
