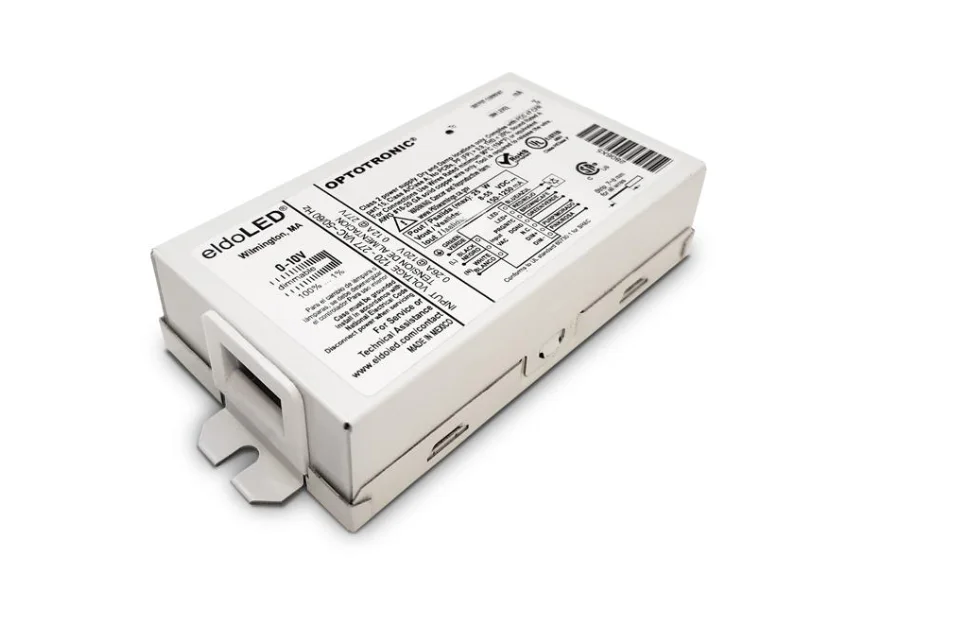

Name: OTi25W/120-277/1A2/DIM-1/J AUX eldoLED OPTOTRONIC (57350/274A1K) Programmable Compact LED Driver - 25W 500mA Stud-Mount Aux-Fast Shipping
SKU: BSF-OPT-57350
Availability: InStock

OTi25W/120-277/1A2/DIM-1/J AUX eldoLED OPTOTRONIC (57350/274A1K) Programmable Compact LED Driver – 25W 500mA Stud-Mount Aux-Fast Shipping

SKU: BSF-OPT-57350 Category: new product

Description

OPTOTRONIC Constant Current LED Driver, 25W Max Power Output, Universal 120-277V Input, Programmable Fixed Output Current 150-1250mA (default 500mA), Output Voltage 8-55VDC, 0-10V Analog Dimming with 1-100% Range, J-style case with PEM mounting Studs, 12V auxiliary port

Optotronic Compact 25W Programmable Constant Current LED Power Supply

25W Programmable AC DC Converter

Input Voltage: 120-277 VAC

Output Voltage: 8-55V DC

Output Current: 150-1250mA programmable, FACTORY SET TO 500mA

0-10V Analog Dimming 1%-100%

J-style: Bottom Exit Mounting Studs

Auxiliary port 12V/20V/24V (12V FACTORY DEFAULT)

Note: Osram Optotronic is now part of the Acuity eldoLED Optotronic brand family.

Spec Sheets

OTi25W/120-277/1A2/DIM-1/J AUX (57350/*274A1K) Spec Sheet

OPTOTRONIC Programmable Compact Dimmable LED Drivers

Technical Guide
