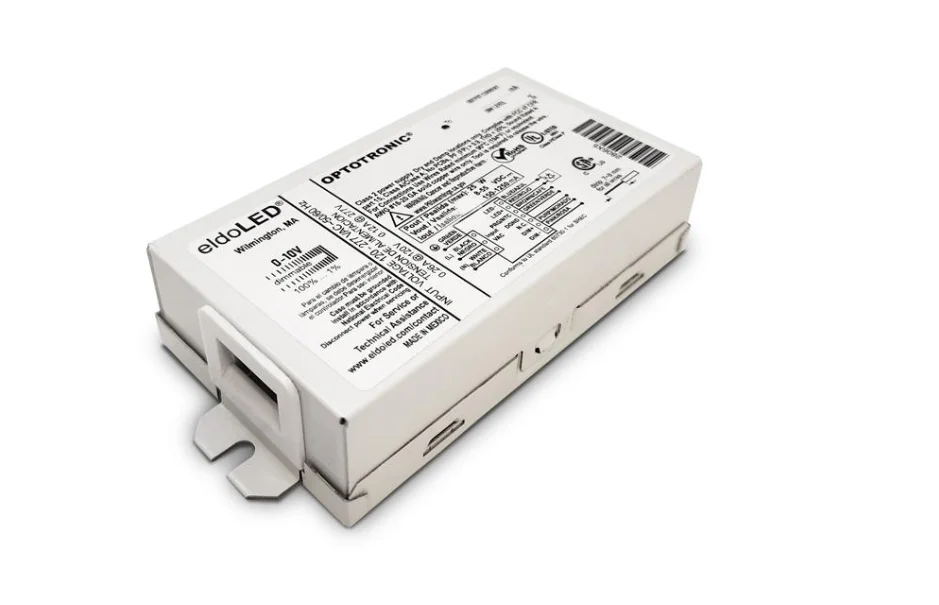

OTi25W/120-277/1A2/DIM-1/J eldoLED OPTOTRONIC (57348/274A1J) Programmable Constant Current LED Driver – 25W 500mA J-style-Fast Shipping

Description

OPTOTRONIC Constant Current LED Driver, 25W Max Power Output, Universal 120-277V Input, Programmable Fixed Output Current 150-1250mA (factory default 500mA), Output Voltage 8-55VDC, 0-10V Analog Dimming with 1-100% Range, J-style case with PEM mounting Studs

Optotronic Compact 25W 500mA Constant Current LED Power Supply

25W Programmable AC DC Converter

Input Voltage: 120-277 VAC

Output Voltage: 8-55V DC

Output Current: 150-1250mA programmable, FACTORY SET TO 500mA

0-10V Analog Dimming 1%-100%

J-style: Bottom Exit Mounting Studs

Note: Osram Optotronic is now part of the Acuity eldoLED Optotronic brand family.

Spec Sheets

OTi25W/120-277/1A2/DIM-1/J OPTOTRONIC (57348/*274A1J) Spec Sheet

OPTOTRONIC Programmable Compact Dimmable LED Drivers

Technical Guide
