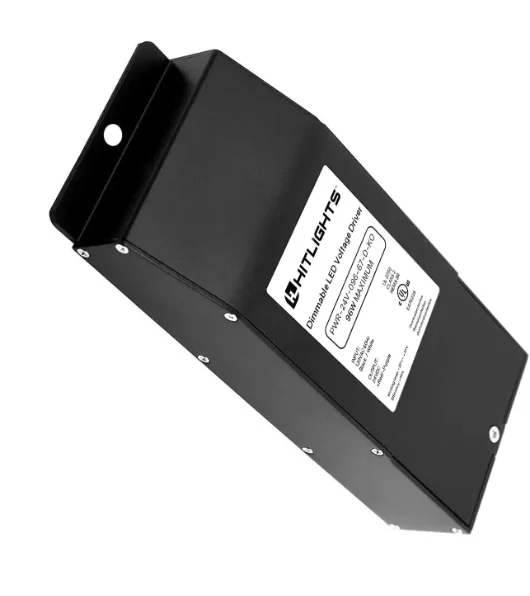

PWR-24V-096-67-D-KO Hitlights EK-Series Constant Voltage LED Driver – 96W 24V Dimmable Junction-Box-Fast Shipping

Description

Hitlights Constant Voltage LED Driver, 96W Max Power, 120V Input, Fixed 24Vdc Output, Output Current up to 4160mA, Phase Dimmable 1%-100%, NEMA 3R Junction Box

Hitlights 96W 24V Constant Voltage LED Power Supply – UL Listed

Max 96W LED Power Supply

Input Voltage: 120VAC, Output Voltage: 24VDC

Current Output: up to 4.16A

Dimming: phase-dimmable down to 1% with leading edge TRIAC dimmers

Class 2 power supply

Surface Mount Junction Box with two ½” knockouts

Hitlights PWR-24V-096-67-D-KO

Spec Sheets

Hitlights PWR-24V-096-67-D-KO Spec Sheet

Hitlights EK-Series Dimmer Compatibility List
