Description

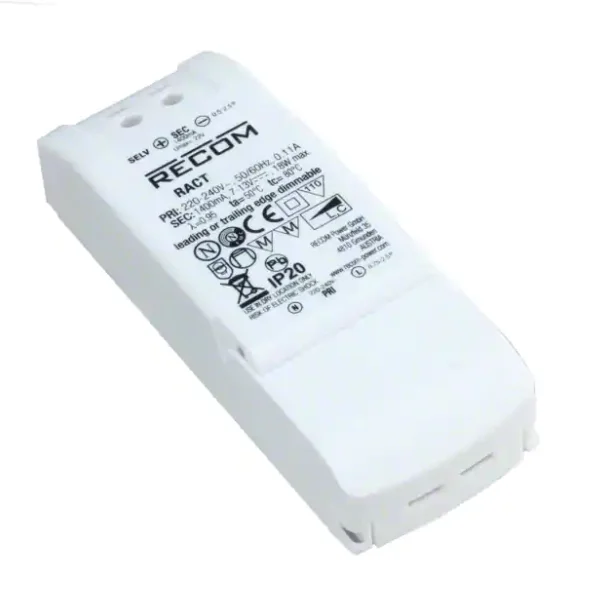

RACT18-1400 RECOM AC-DC LED Driver, Universal Input 198-264V, 1400mA constant current output, Triac-Dimmable
RECOM 18W AC/DC Dimmable Convertor LED Driver
The RACT18-xxx series are low cost, triac-dimmable, constant current 18W LED drivers available with either 350mA, 500mA, 700mA, 1.05A or 1.4A full-range outputs. The drivers are Class II (double insulated) meaning no earth connection is required. The phase angle dimming works with leading or trailing edge dimmers. The RACT18 is suitable for indoor locations up to 50°C ambient temperature and is certified for building into furniture for applications such as dimmable shelf lighting, cove lighting or accent lighting. It is CE (LVD + EMC + RoHS) + EAC marked and has the international IEC61347-1 CB report certification.
Total Power: 18 Watts
Constant Current Output: 1400mA
Output Voltage: 6.5-13V
Input Voltage: 198-264VAC
IP20 Rated
Triac dimmable with leading or trailing edge dimmers
Class II with SELV output (no earth required)
Extra-large screw terminals and integrated cable clamps for easy installation
Power factor corrected>0.95
Dimming range 1..100%
Compatible with a wide range of dimmers
