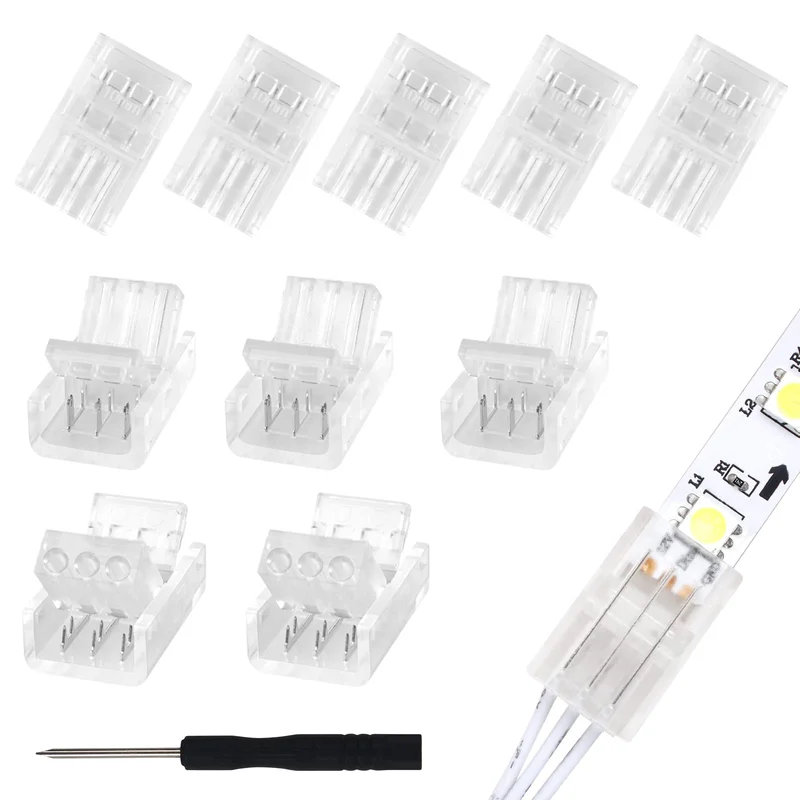

Rgbzone 10Pcs 3 Pin 10Mm Led Strip Connectors Gapless Solderless Strip To Wire Quick Connector For 10Mm Waterproof And Non-Waterproof Ws2811 Ws2812B Led Strip Lights-Fast Shipping

Description

Specification:

Working voltage: 0-36V

Maximum pin current: 5A

Interface type: 3pin

Working PCB width: 10mm

Working environment temperature: -20~50?

Installation Tips:

1. Cut the strips and wires to the length you need, and then fully open the clamp.

2. Push the strap in until it touches the backing, let the pins touch the connector, and then press down firmly to make sure the pins pierce the strap. (You can use tools such as pliers)

3. Push the wire into the wire end of the connector, and then press it down firmly to ensure that the pin pierces the wire sheath. (You can use pliers and other tools)

4. Reminder: 1. Please make sure that the contact point of the light strip is in contact with the copper sheet of the buckle; 2. When connecting the light strip, there is no need to peel off the adhesive on the back of the light strip.

Package Content :10Pcs 3pin led strip light connectors for wire to strip quick connection
