Description
Thomas Research Constant Current LED Driver, 25W Max Output Power, Universal 120-277V Input, Fixed Programmable Output Current 150-1300mA (factory set at 700mA), 12-56Vdc Output Volts, Dual Entry, Analog 0-10V Dimmable

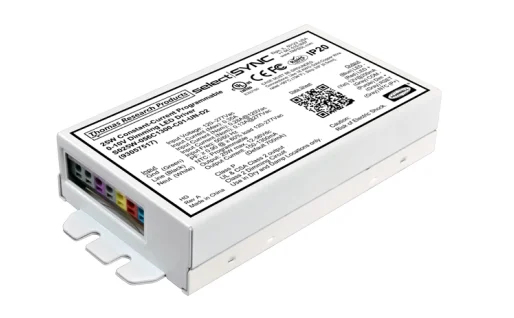

Thomas Research 25W Power Supply – Dual Entry
Max Total Power: 25 Watts
Output Current 150-1300mA (factory set at 700mA)
Input Voltage: 120-277 VAC
UL Class P, Class 2
IP20 Dry & Damp Location Rated
Dimmable 0-10V with 1-100% adjustable minimum
Linear (default) or Logarithmic dimming curve options
Auxiliary 12Vdc, 200mA output for powering controls or fans
Spec Sheets
Thomas Research S025W-056C1300-C02-UN-D2 Specs
