SIF30-I0650 120-277 W D1-S1S2 Simon Quic Field Select Constant Current LED Driver – 30W 650/540/450mA-Fast Shipping

Description

Simon Quic Constant Current LED Driver with Field Selectable Output Current, 30W Max Power Output, Universal 120-277V Input, Switch Select 650mA/540mA/450mA Fixed Output Current, 30-42Vdc Output, Analog 0-10V Dimming

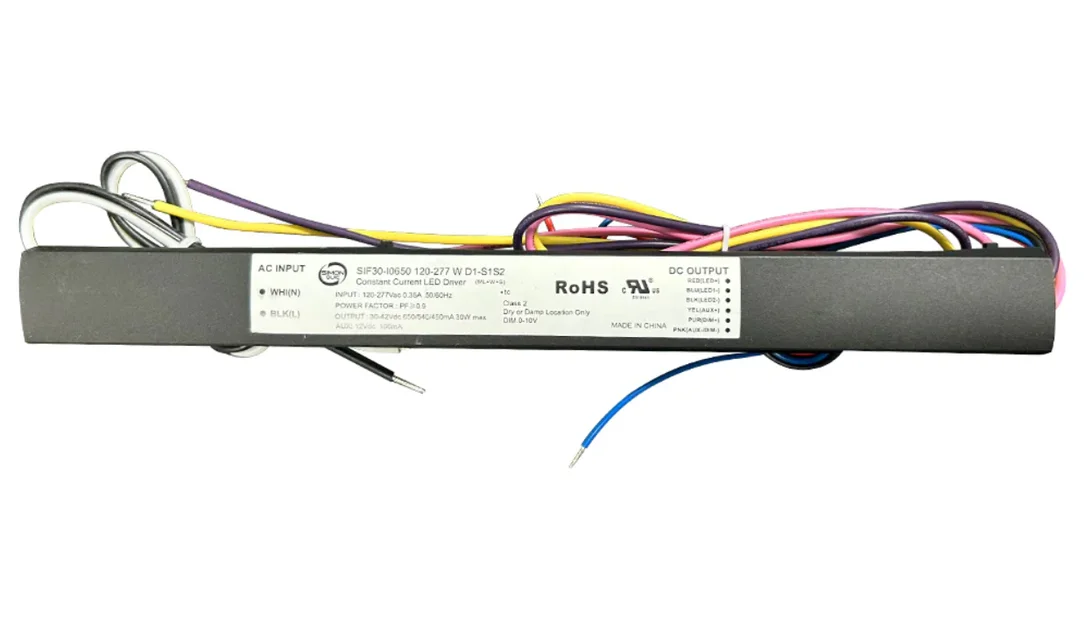

Simon Quic 30W Field-Select-Current LED Driver

SIF30-I0650/120-277/W/D1-S1S2 (ML+W+S)(650/540/450)

Max Power Output: 30W

Field Switch Select Fixed Output Current: 650mA 540mA 450mA

Field Switch Select CCT

Output Voltage: 30-42V

Dimming function: Analog 0-10V

Input Voltage: 120-277 VAC

Auxiliary 12V 100mA

Spec Sheets

Simon Quic SIF30-I0650/120-277/W/D1-S1S2 Spec Sheet
