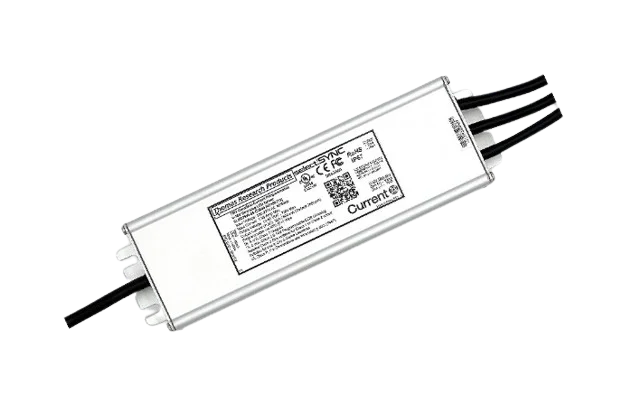

SLED100W-55-C3500 Thomas Research selectSYNC Programmable LED Driver – 100W 3500mA Dimmable-Fast Shipping

Description

Thomas Research Constant Current LED Driver, 100W Max Output Power, Universal 120-277V Input, Fixed Programmable Output Current 350-3500mA (factory default at 3500mA), 10-55Vdc Output, Analog 0-10V Dimmable

Thomas Research 100W 3500mA Programmable Constant Current LED Driver

Max Total Power: 100W

Output Current Programmable: 350-3500mA (factory set at 3500mA)

Input Voltage: 120-277 VAC

UL Class P, Class 2

IP67 Dry & Damp Location Rated

Dimmable 0-10V with 0-100% adjustable minimum

Linear or logarithmic dimming curve options

Auxiliary 12Vdc, 200mA output for powering controls or fans

Spec Sheets

Thomas Research SLED100W-55-C3500 Specs

Thomas Research selectSYNC Brochure
