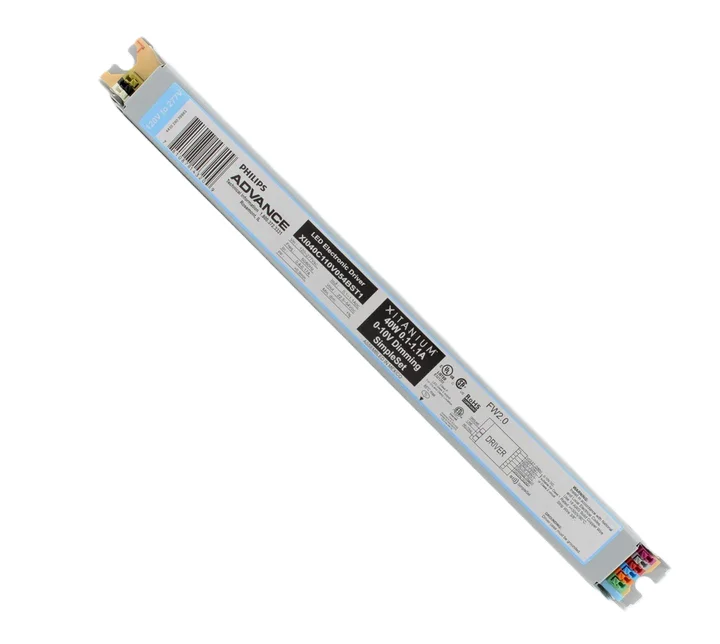

XI040C110V054BST1 Advance Xitanium Programmable Constant Current LED Driver – 40W 1100mA-Fast Shipping

Description

Advance Xitanium LED Driver Programmable with SimpleSet, 40W Max Power Output, Universal 120V-277V Input, Programmable Fixed Output Current 100-1100mA (factory set at 1100mA) or via Rset, Output 22-54V, Analog 0-10V Dimming

Advance Xitanium 40W 1100mA LED Power Supply

Adjustable Output Current with SimpleSet (1100mA Default) or Resistance Dimming

Total Output Power: 40 Watts

Output Current: .1 to 1.1A (factory set at 1100mA) programmable via SimpleSet or Resistance (Rset)

Input Voltage: 120 to 277 VAC

Output Voltage Range: 22.5V-54V

UL Damp and Dry

Dimmable 1%-100%, 0-10V Analog

Class 1 and Class 2 Wiring

Spec Sheets

Advance Xitanium XI040C110V054BST1 Specs
