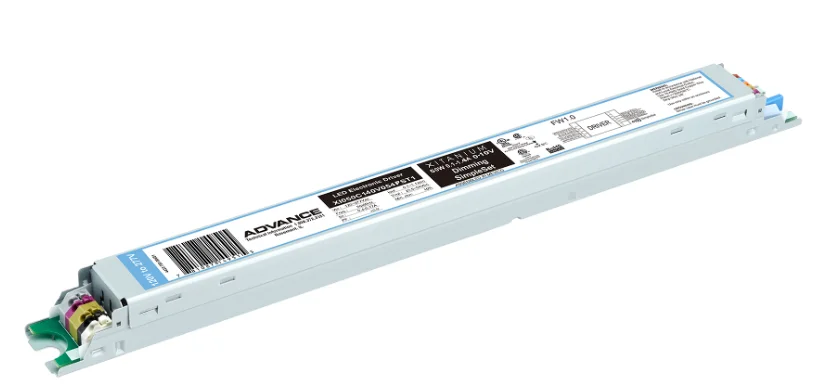

XI050C140V054PST2 Advance Xitanium ComfortFade Programmable LED Driver – 50W 1400mA Aux-port-Fast Shipping

Description

Advance Xitanium ComfortFade LED Driver with SimpleSet programming, 50W Max Output Power, Input 120V-277V, Fixed Output Current 100-1400mA (1400mA factory default), Output 10-54V, 0-10V Dimmable 1%-100%, Linear with Feet Mount, Auxiliary Port

Advance Xitanium 50W 1400mA LED Power Supply

50W 0.1-1.4A 54V 0-10V INT (1% dim) with SimpleSet Programming

Total Output Power: 50 Watts

Output Current: .1-1.4A (factory set at 1.4A)

Input Voltage: 120 to 277 VAC

Output Voltage Range: 10V-54V

UL Damp and Dry

Dimmable 1%-100%, 0-10V Analog

Class 1 and Class 2 Wiring

Aux Port 12V 100mA, 24V 50mA programmable

Spec Sheets

Advance Xitanium XI050C140V054PST2 Specs

Advance Xitanium ComfortFade Brochure
